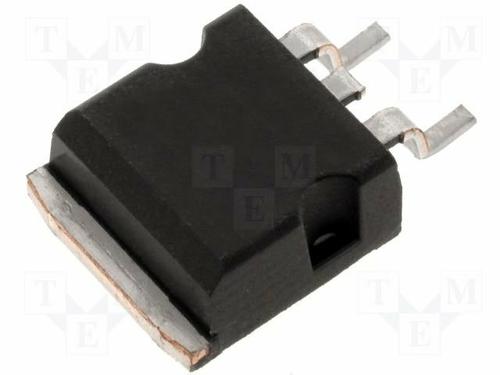

VNB10N07-E图片1

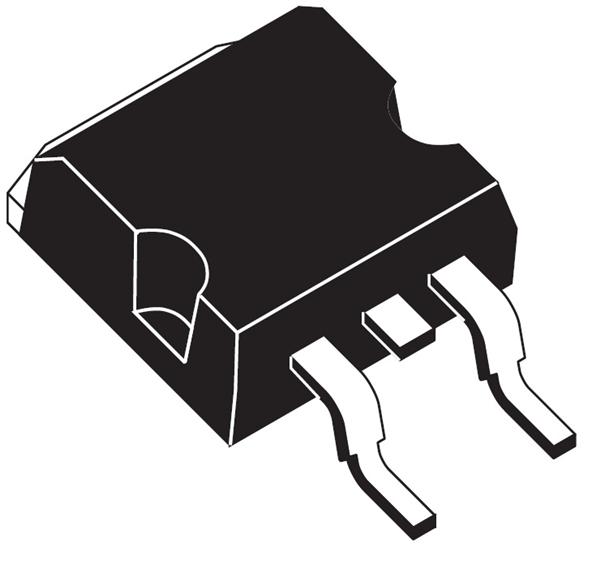

VNB10N07-E图片2
VNB10N07-E图片3
VNB10N07-E图片4
VNB10N07-E图片5
VNB10N07-E图片6
VNB10N07-E图片7
VNB10N07-E图片8
VNB10N07-E图片9
VNB10N07-E概述

电源负载分配开关, 低压侧, 18 V输入, 10 A, 0.1 ohm, 1输出, TO-263-3

Use this specially designed low side power switch by STMicroelectronics to safely switch between different voltage levels in your electronic circuit. This charge controller has single output. This charge controller has an input voltage of 18Max V. This device has a maximum power dissipation of 50000 mW. It features 0.14Max Ohm switch on resistance. Its maximum power dissipation is 50000 mW. This device has a supply current of 0.25 mA and a minimum output current of 7 A. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube.

VNB10N07-E中文资料参数规格
技术参数

额定功率 50 W

输出接口数 1

输出电流 120 A

供电电流 0.25 mA

通道数 1

针脚数 3

漏源极电阻 140 mΩ

极性 N-Channel

耗散功率 50 W

漏源击穿电压 10.0 V

连续漏极电流Ids 10.0 A

输入电压Max 18 V

输出电流Max 7 A

输出电流Min 7 A

输入数 1

工作温度Max 150 ℃

工作温度Min -40 ℃

耗散功率Max 50000 mW

输入电压 18 V

封装参数

安装方式 Surface Mount

引脚数 3

封装 TO-263-3

外形尺寸

高度 4.6 mm

封装 TO-263-3

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99
