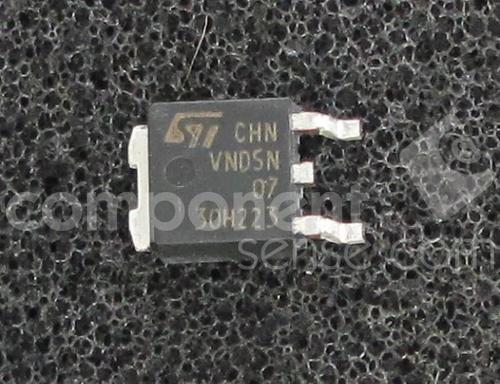

? OMNIFET ?:岗AUTOPROTECTED功率MOSFET ?OMNIFET?: FULLY AUTOPROTECTED POWER MOSFET
This low side power switch by STMicroelectronics is designed to connect a load to a power supply. This charge controller has single output. This device has a maximum power dissipation of 60000 mW. This charge controller has an input voltage of 18Max V. It features 0.2Max Ohm switch on resistance. This device has a supply current of 0.25 mA and a minimum output current of 5Max A. Its maximum power dissipation is 60000 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This charge controller has a minimum operating temperature of -40 °C and a maximum of 150 °C.
额定电压DC 70.0 V
额定电流 5.00 A
输出接口数 1
供电电流 0.25 mA
漏源极电阻 200 mΩ
耗散功率 60000 mW
漏源击穿电压 70.0 V
连续漏极电流Ids 5.00 A
输出电流Max 3.5 A
输出电流Min 5 A
耗散功率Max 60000 mW
电源电压Max 18 V
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
封装 TO-252-3
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Not Recommended for New Designs
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VND5N07 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
VND5N07-E 意法半导体 | 类似代替 | VND5N07和VND5N07-E的区别 |
BTS134D 英飞凌 | 功能相似 | VND5N07和BTS134D的区别 |
