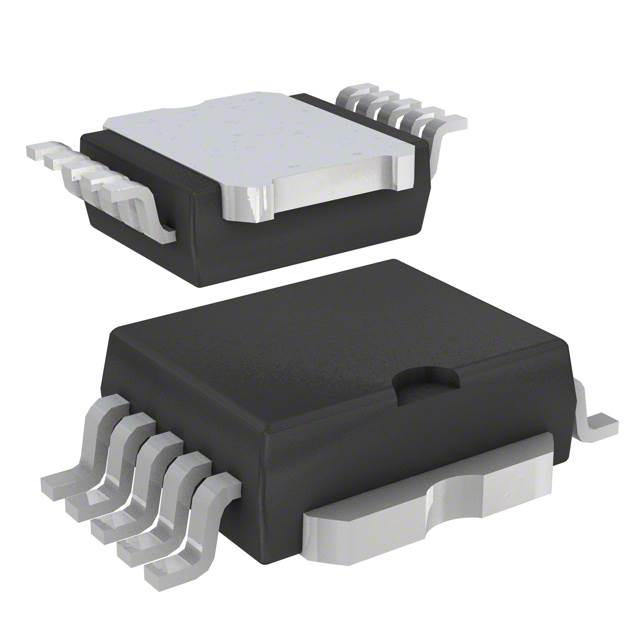

Power Switch Hi Side 6A 12Pin10+2Tab PowerSO Tube
电源开关/驱动器 1:1 N 通道 6A 10-PowerSO
得捷:
IC PWR DRIVER N-CHAN 1:1 PWRSO10
贸泽:
Power Switch ICs - Power Distribution HIGH SIDE SMART POWR
艾睿:
Who knew safely switching between various voltage levels in an electronic circuit would be so easy with this high side VN02NSP-E power switch by STMicroelectronics. This charge controller has single output. This device has a maximum power dissipation of 58000 mW. It features 0.4Max Ohm switch on resistance. This device has a supply current of 15Max mA and a minimum output current of 6Max A. Its maximum power dissipation is 58000 mW. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This charge controller has a minimum operating temperature of -40 °C and a maximum of 150 °C.
电源电压DC 7.00V min
输出接口数 1
输出电压 60 V
输出电流 6 A
耗散功率 58 W
输出电流Max 6 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 58000 mW
电源电压 7V ~ 26V
电源电压Max 26 V
电源电压Min 7 V
安装方式 Surface Mount
引脚数 10
封装 PowerSO-10
封装 PowerSO-10
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
