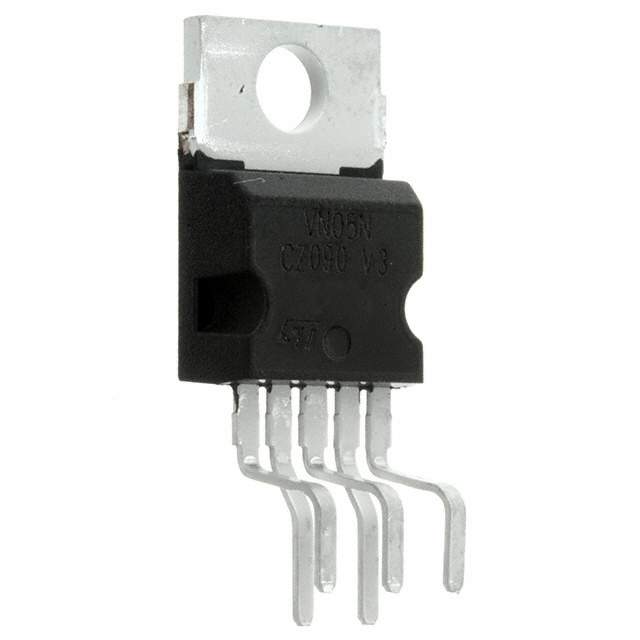

STMICROELECTRONICS VN05N-E 芯片, 固态继电器, 高压侧, 60V PENTAWATT
Description
The VN05N is a monolithic device made using STMicroelectronics VIPower technology, intended for driving resistive or inductive loads with one side grounded. Built-in thermal shutdown protects the chip from over temperature and short circuit. The input control is 5V logic level compatible. The open drain diagnostic output indicates open circuit no load and over temperature status.
Features
■ Output current continuous: 13A @ Tc=25°C
■ 5V logic level compatible input
■ Thermal shutdown
■ Under voltage shutdown
■ Open drain diagnostic output
■ Very low standby power dissipation
电源电压DC 7.00V min
输出接口数 1
输出电压 60.0 V
输出电流 13 A
针脚数 5
耗散功率 56000 mW
输出电流Max 13 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 56000 mW
电源电压Max 26 V
电源电压Min 7 V
安装方式 Through Hole
引脚数 5
封装 Pentawatt-5
封装 Pentawatt-5
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
