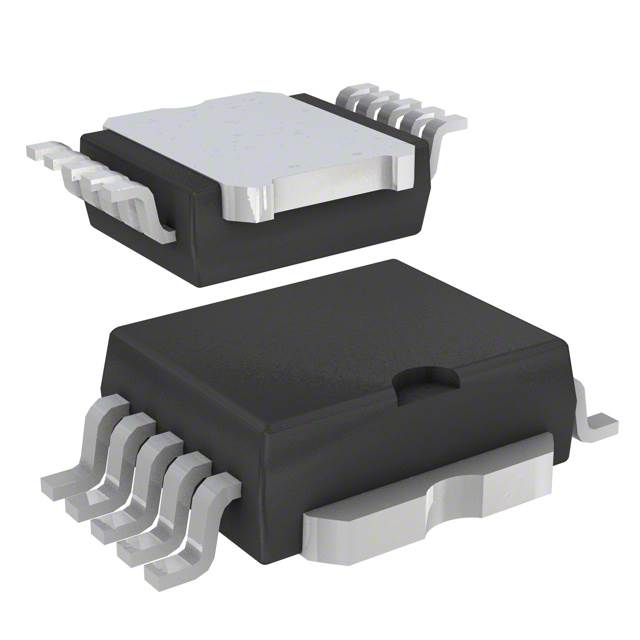

VN920SP 系列 36 V 50 mOhm 单通道 高压侧 固态 继电器 - PowerSO-10
Do your circuit specifications require switching between low and high currents and voltages? STMicroelectronics" high side power switch is your solution. This charge controller has single output. It features 0.015Max Ohm switch on resistance. This device has a maximum power dissipation of 96100 mW. Its maximum power dissipation is 96100 mW. This device has a supply current of 5Max mA and a minimum output current of 30 A. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This charge controller has an operating temperature range of -40 °C to 150 °C.
电源电压DC 36.0V max
输出接口数 1
输出电流 30 A
供电电流 5 mA
通道数 1
漏源极电阻 50.0 mΩ
耗散功率 96.1 W
输出电流Max 30 A
输出电流Min 30 A
工作温度Max 150 ℃
工作温度Min -40 ℃
耗散功率Max 96100 mW
电源电压 5.5V ~ 36V
安装方式 Surface Mount
引脚数 12
封装 PowerSO-10
封装 PowerSO-10
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VN920SP13TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
VN920SPTR-E 意法半导体 | 完全替代 | VN920SP13TR和VN920SPTR-E的区别 |
VN920SP 意法半导体 | 类似代替 | VN920SP13TR和VN920SP的区别 |
VN920SP-E 意法半导体 | 功能相似 | VN920SP13TR和VN920SP-E的区别 |
