VNH7013XP-E

汽车集成H桥 Automotive integrated H-bridge

The is an automotive integrated H-bridge intended for a wide range of automotive applications driving DC motors. The device incorporates a dual channel and two single channel MOSFETs. All the devices are designed using STMicroelectronics®well known and proven proprietary VIPower®M0-S7 technology that allows to integrate in a package four different channels in H-bridge topology.

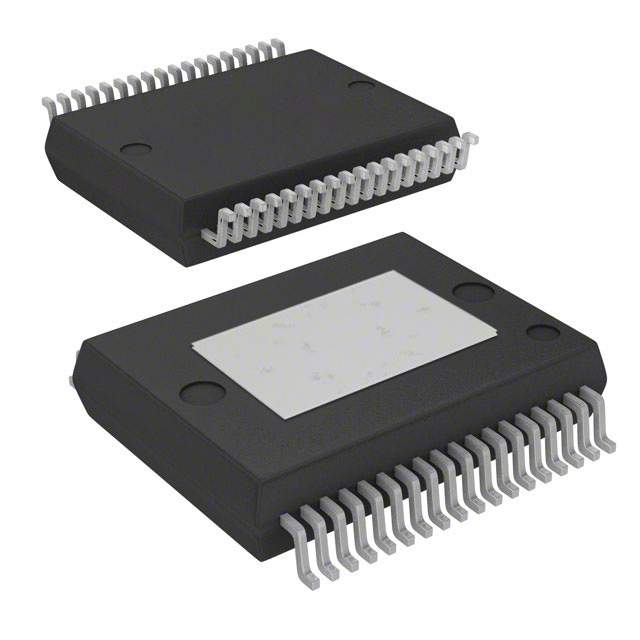

This package, specifically designed for the harsh automotive environment offers improved thermal performance thanks to exposed die pads. Moreover, its fully symmetrical mechanical design allows superior manufacturability at board level.

**Key Features**

.

Maximum VCC voltage: 72 V

.

10 V compatible inputs

.

RDSon per leg: 13 mΩ typical

.

Embedded thermal sensor: -8.1 mV/°K

.

Very low stray inductance in power line
