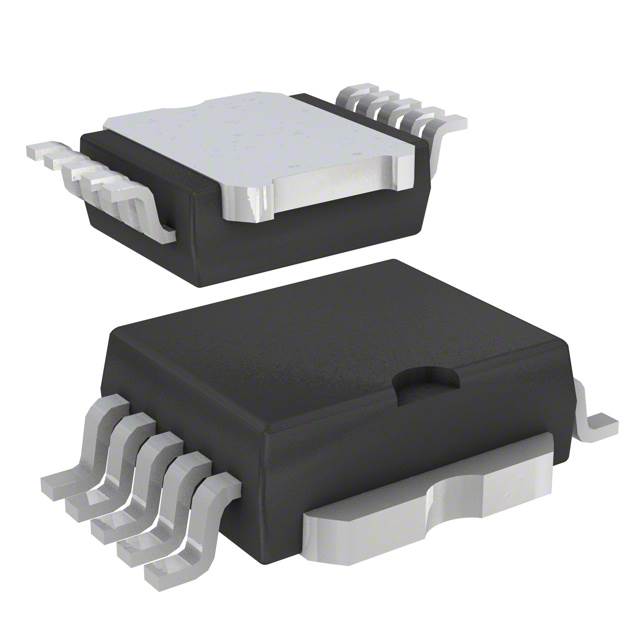

VNQ860SP-E 系列 36 V 四通道 高压侧 驱动器 - PowerSO
电源开关/驱动器 1:1 N 通道 250mA 10-PowerSO
得捷:
IC PWR DRIVER N-CHAN 1:1 PWRSO10
贸泽:
Gate Drivers QUAD CHANNEL DRIVER
艾睿:
Look no further than STMicroelectronics&s; high side VNQ860SPTR-E power switch, a useful tool used for safely dealing with high-end frequencies. This charge controller has 4 outputs. It features 0.27Max Ohm switch on resistance. This device has a maximum power dissipation of 90000 mW. This device has a supply current of 0.07 mA and a minimum output current of 0.25 A. Its maximum power dissipation is 90000 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This charge controller has an operating temperature range of -40 °C to 150 °C.
富昌:
VNQ860SP-E 系列 36 V 四通道 高边 驱动器 - POWERSO-10
Verical:
Current Limit SW 4-IN 4-OUT to 1.1A 12-Pin10+2Tab PowerSO T/R
儒卓力:
**4xHSS 270mOhm 36V PowerSO10 SMD **
Win Source:
IC DRIVER HI SIDE QUAD POWERSO10
输出接口数 4
输出电流 250 mA
供电电流 0.07 mA
耗散功率 90 W
输出电流Max 250 mA
输入数 4
工作温度Max 150 ℃
工作温度Min -40 ℃
耗散功率Max 90000 mW
电源电压 5.5V ~ 36V
电源电压Max 36 V
电源电压Min 5.5 V
安装方式 Surface Mount
引脚数 12
封装 PowerSO-10
封装 PowerSO-10
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VNQ860SPTR-E ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
VNQ860SP-E 意法半导体 | 功能相似 | VNQ860SPTR-E和VNQ860SP-E的区别 |
