Vishay VLMx1500 系列 LED### 可见光 LED，Vishay

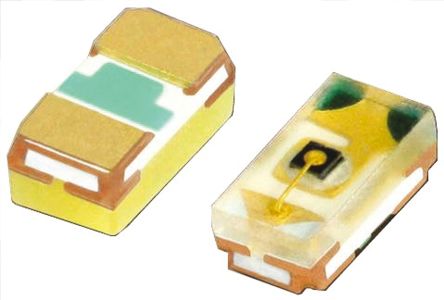

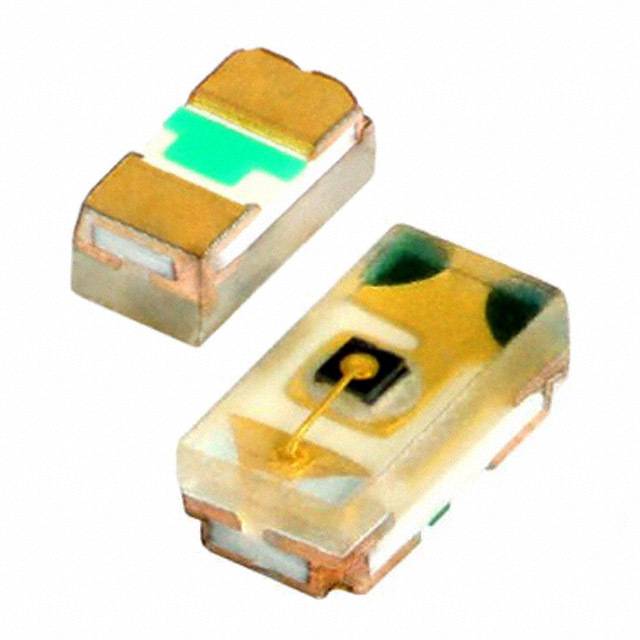

The from Vishay is a super thin chip with exceptional brightness for lighting solution. It is available in EIA 0402 standard package with 1mm x 0.5mm x 0.35mm L x W x H dimension. This innovative ChipLED technology opens way to smaller products of higher performance and more design in flexibility. The 0402 LED is an obvious solution for small scale, high brightness products that are expected to work reliable in an arduous environment. It is used in backlight for keypads, audio and video equipment, navigation systems, cellular phone displays, backlighting in office equipment, indoor and outdoor message boards, miniaturized colour effects traffic displays, flat backlight for LCDs, switches and symbols, indicators and backlighting in telephones and fax machines.
- .
- High efficiency AlInGaP technology
- .
- Extremely wide 130° viewing angle, ±65° angle of half intensity
- .
- Preconditioning according to JEDECR level 2a
- .
- Compatible with IR reflow soldering
- .
- Yellow colour LED
- .
- Luminous intensity of 180mcd max at IF = 20mA
- .

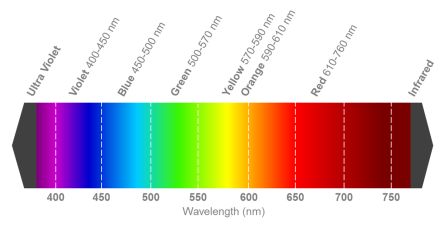

- Wavelength of 597nm max at IF = 20mA
- .
- Maximum forward voltage of 2.4V at IF = 20mA
- .
- High reliability PCB based
Proper storage and handling procedures should be followed to prevent ESD damage to the device.
