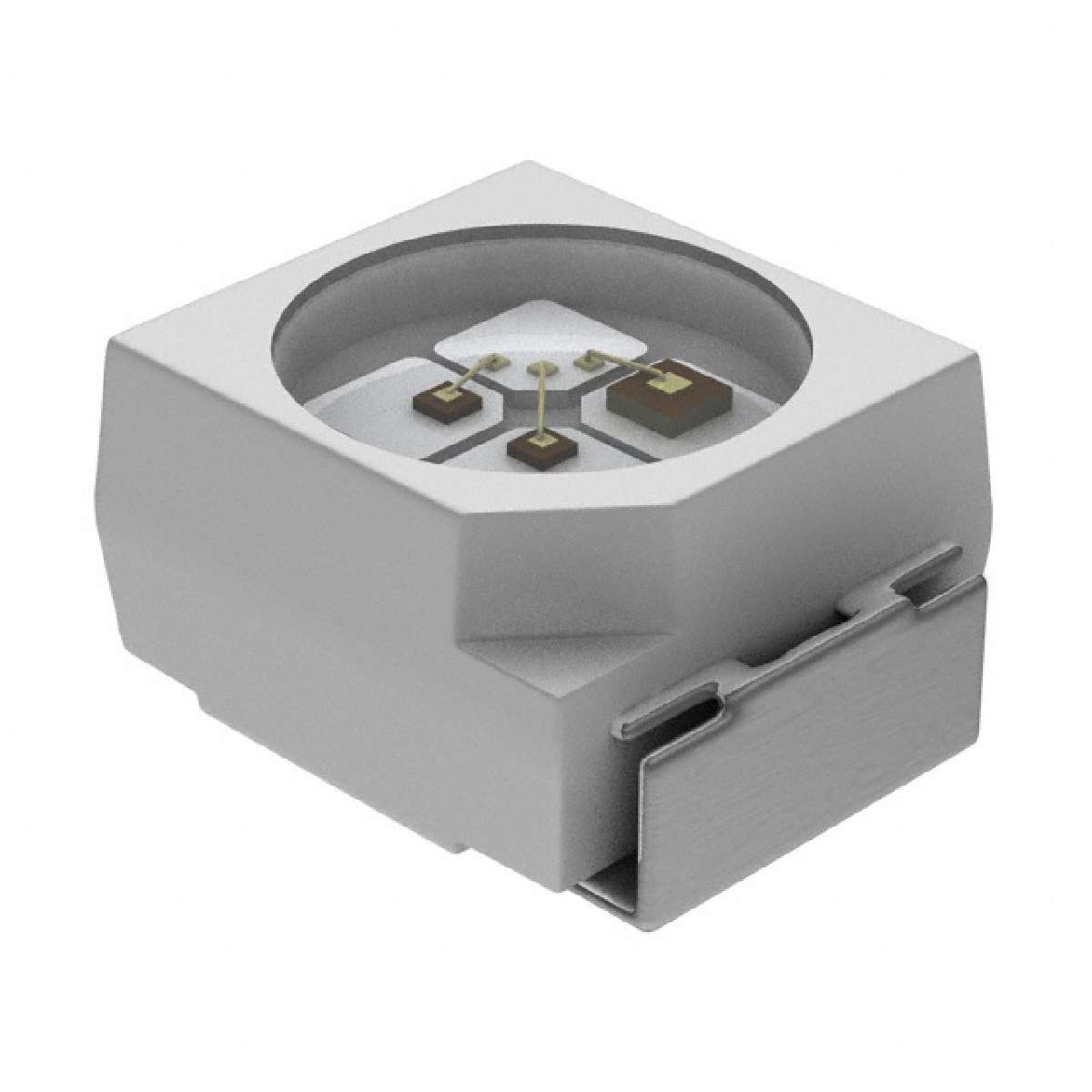

VISHAY VLMA3100-GS08 发光二极管灯, 黄色
The is a low current SMD for use with small indicator for outdoor applications, indicator and backlight in office equipment. This new device has been designed to meet the increasing demand for low current SMD LEDs. It consists of a lead frame which is embedded in a white thermoplastic. The reflector inside this package is filled up with clear epoxy.
- .
- Exceptional brightness
- .
- Compatible with automatic placement equipment
- .
- Compatible with infrared, vapour phase and wave solder processes according to CECC
- .
- Non-diffused lens excellent for coupling to light pipes and backlighting
- .
- Very low power consumption
- .
- 6V Reverse voltage
- .
- 20mW Power dissipation
- .
- Halogen-free, green product
工作电压 2.2V ~ 2.9V
额定功率 20 mW
针脚数 2
正向电压 2.2 V
波长 594 nm
发光强度 2.5 mcd
视角 120°
峰值波长 585 nm
耗散功率 20 mW
测试电流 2 mA
正向电流 2 mA
正向电流Max 7 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 20 mW
安装方式 Surface Mount
引脚数 2
封装 PLCC-2
长度 3 mm
宽度 2.8 mm
高度 1.85 mm
封装 PLCC-2
颜色 Yellow
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Imaging, Video & Vision, Signalling, 车用, Audio, Automotive, Communications & Networking, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VLMA3100-GS08 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VLMA3100-GS18 威世 | 类似代替 | VLMA3100-GS08和VLMA3100-GS18的区别 |
