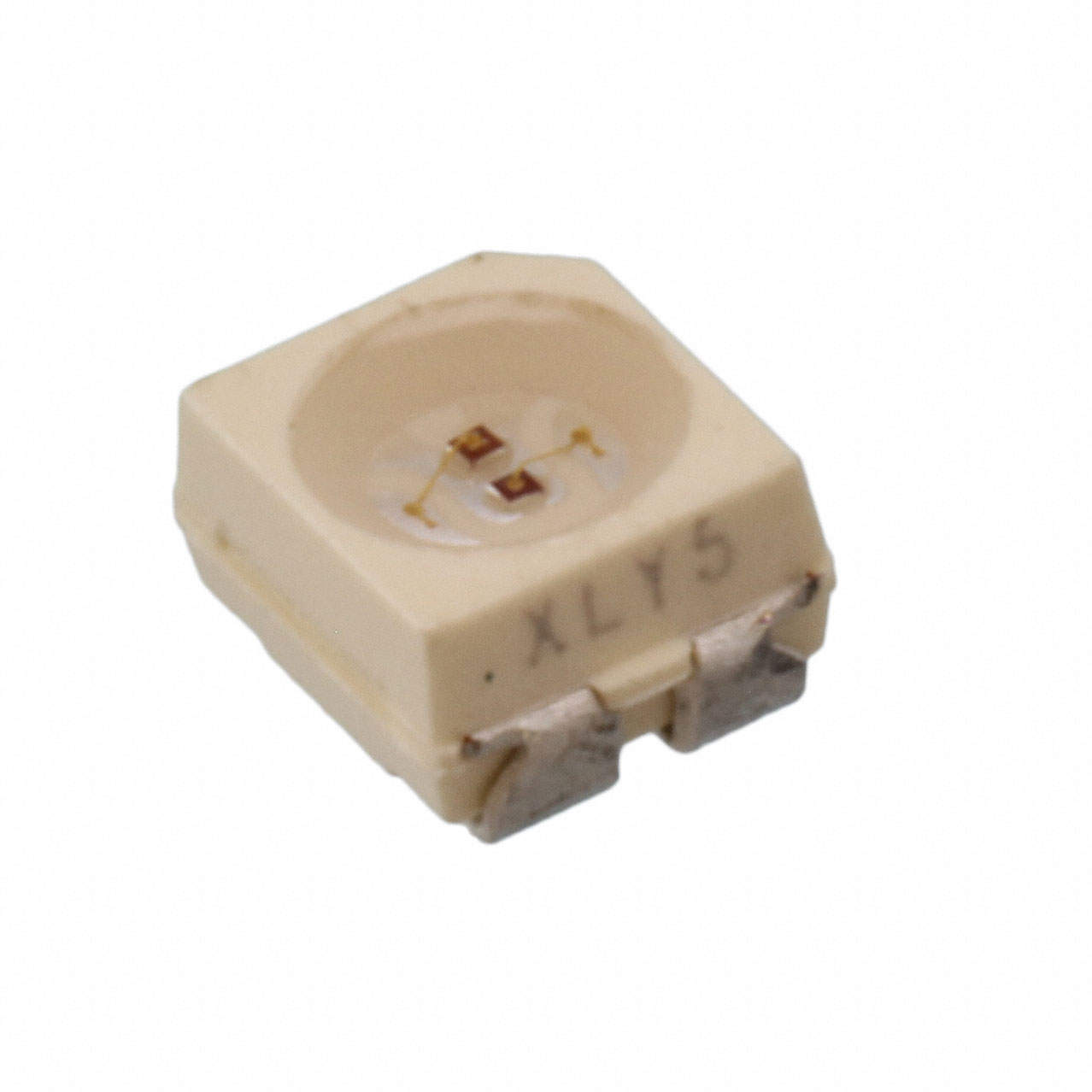

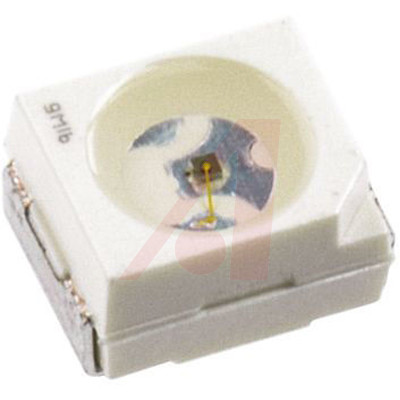

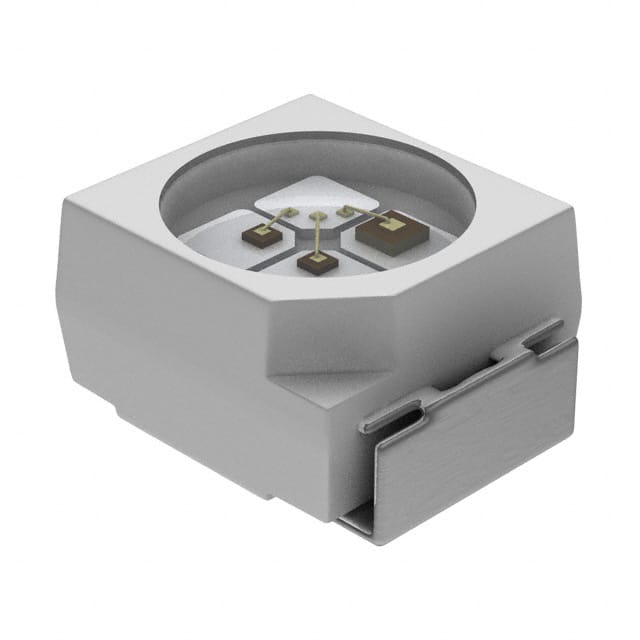

VLMV3100-GS08

Vishay VLMx31 系列 LEDVishay 的 VLMx31 系列 LED 采用标准 PLCC-2 或 PLCC-3 封装。 它们为圆形平顶表面安装 SMT LED。 VLMx31 LED 特别适用于需要有限的亮度和颜色选择的应用。 它们由嵌入在白色热塑性塑料中的引线框制成。VLMx31 LED 包含由透明环氧树酯填充的反射器。 该系列的合适应用包括：汽车、电信、指示灯、背光和一般用途。VLMx31 LED 的功能： \- 标准 PLCC 封装 \- 薄型封装 \- 非扩散式透镜 \- 低功耗 \- 发光强度分类 ### 可见光 LED，Vishay

The is a bicolour SMD for use with indicator and backlight in office equipment, flat backlight for LCDs, switches and symbols. This device has been designed to meet the increasing demand for surface mounting technology. It consists of a lead frame which is embedded in a white thermoplastic. The reflector inside this package is filled up with clear epoxy. It is compatible with IR reflow, vapour phase and wave soldering processes according to CECC 00802 and J-STD-020.

.

GaAsP on GaP technology

.

Compatible with automatic placement equipment

.

Non-diffused lens excellent for coupling to light pipes and backlighting

.

Low power consumption

.

Preconditioning according to JEDEC® level 2a

.

Up to 2kV ESD-withstand voltage

.

6V Reverse voltage

.

100mW Power dissipation

.

Halogen-free, green product
