V130LXR1318

V130LXR1318图片1

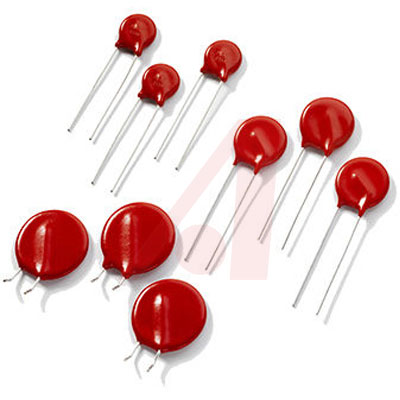

V130LXR1318图片2
V130LXR1318概述

UltraMOVTM Series Varistor Array 450pF, Clamping 340V, Varistor 130V

** Metal Oxide Varistors - UltraMOV Series**

Littelfuse UltraMOV series of MOV"s are transient surge suppressors that are ideal for applications requiring high peak surge current ratings and high energy absorption capability. The UltraMOV series are primarily intended for use in AC line voltage applications such as TVSS, UPS, AC Power Taps, AC Power Meters or other products that require voltage clamping of high transient surge currents from sources such as lightning, inductive load switching or capacitor bank switching.

V130LXR1318中文资料参数规格
技术参数

额定电压DC 175 V

额定电压AC 130 V

电容 450 pF

电路数 1

钳位电压 340 V

封装参数

安装方式 Through Hole

封装 Radial

外形尺寸

封装 Radial

物理参数

工作温度 55℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

在线购买V130LXR1318
型号: V130LXR1318
描述:UltraMOVTM Series Varistor Array 450pF, Clamping 340V, Varistor 130V
