VLS2010ET-6R8M

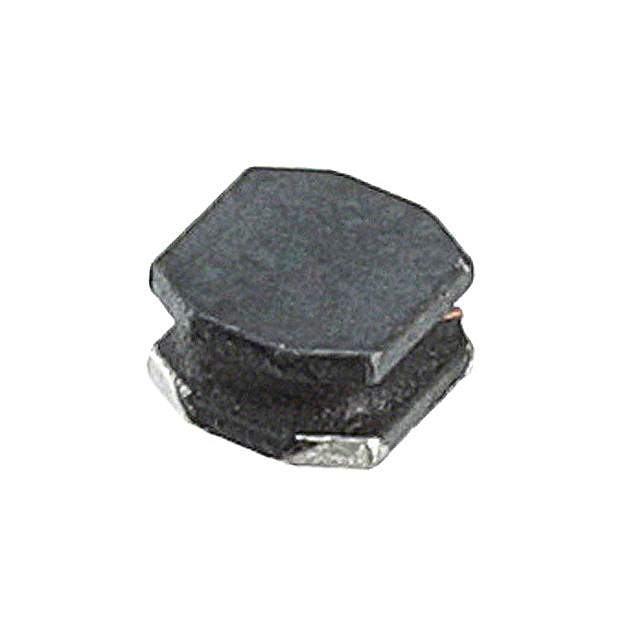

VLS2010ET-6R8M图片1
VLS2010ET-6R8M图片2
VLS2010ET-6R8M图片3
VLS2010ET-6R8M图片4
VLS2010ET-6R8M图片5
VLS2010ET-6R8M图片6
VLS2010ET-6R8M图片7
VLS2010ET-6R8M图片8
VLS2010ET-6R8M图片9
VLS2010ET-6R8M图片10
VLS2010ET-6R8M图片11
VLS2010ET-6R8M图片12
VLS2010ET-6R8M图片13
VLS2010ET-6R8M概述

TDK  VLS2010ET-6R8M  表面贴装功率电感器, VLS-E系列, 6.8 µH, ± 20%, 屏蔽, 0.648 ohm, 630 mA

固定器


得捷:
FIXED IND 6.8UH 570MA 648MOHM SM


贸泽:
Fixed Inductors 6.8uH


e络盟:
功率电感SMD, 6.8 µH, 630 mA, 屏蔽, 640 mA, VLS-E系列, 2mm x 2mm x 1mm


艾睿:
This power VLS2010ET-6R8M surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 2.1 mm long, 1 mm tall and 2.1 mm deep. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 630mA typ with a maximum resistance of 648m Ohm. It has an inductance of 6.8u H. It has a tolerance of 20%. Its test frequency is 1M Hz.


Chip1Stop:
Ind Power Shielded Wirewound 6.8uH 20% 1MHz 630mA T/R


Verical:
Inductor Power Shielded Wirewound 6.8uH 20% 1MHz Ferrite 0.63A 0.648Ohm DCR T/R


Newark:
# TDK  VLS2010ET-6R8M  Surface Mount Power Inductor, VLS-E Series, 6.8 H, 20%, Shielded, 0.648 ohm, 630 mA


VLS2010ET-6R8M中文资料参数规格
技术参数

额定电流 630 mA

容差 ±20 %

电感 6.8 µH

电感公差 ±20 %

测试频率 1 MHz

电阻DC) ≤648 mΩ

工作温度Max 105 ℃

工作温度Min -40 ℃

电阻DC Max 0.648 Ω

封装参数

安装方式 Surface Mount

封装 2010

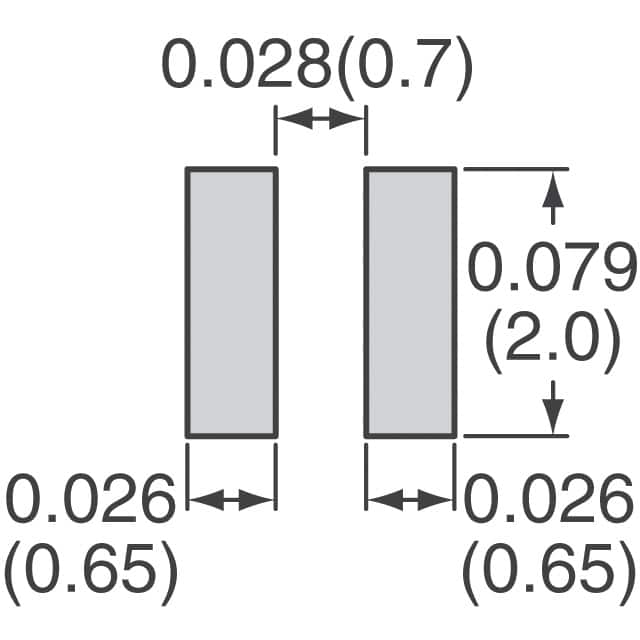

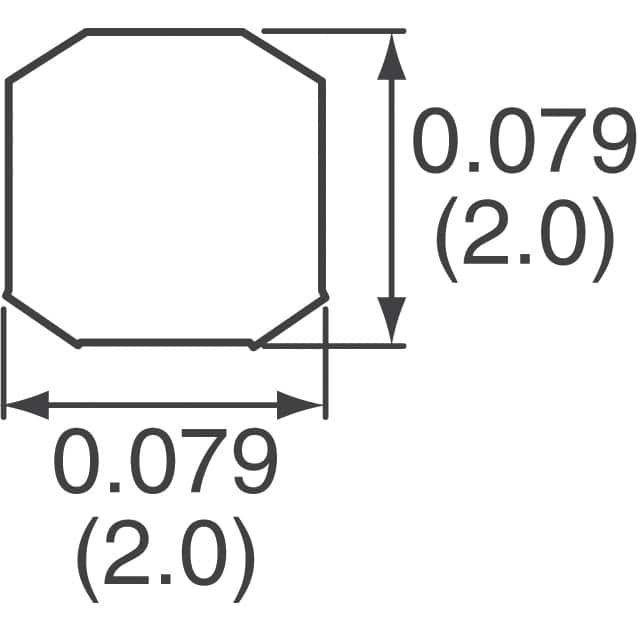

外形尺寸

长度 2 mm

宽度 2 mm

高度 1 mm

封装 2010

物理参数

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Not Recommended

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15

数据手册

在线购买VLS2010ET-6R8M
型号: VLS2010ET-6R8M
制造商: TDK 东电化
描述:TDK  VLS2010ET-6R8M  表面贴装功率电感器, VLS-E系列, 6.8 µH, ± 20%, 屏蔽, 0.648 ohm, 630 mA
替代型号VLS2010ET-6R8M
型号/品牌 代替类型 替代型号对比

VLS2010ET-6R8M

TDK 东电化

当前型号

当前型号

VLS201610CX-6R8M-1

东电化

功能相似

VLS2010ET-6R8M和VLS201610CX-6R8M-1的区别
