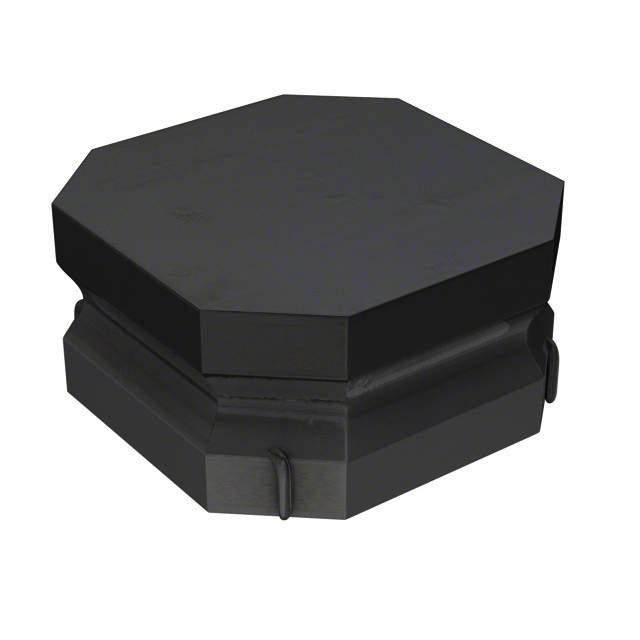

TDK VLS3015ET-1R0N 表面贴装功率电感器, VLS-E系列, 1 µH, ± 30%, 屏蔽, 0.058 ohm, 2.1 A
固定器
得捷:
FIXED IND 1UH 2A 58 MOHM SMD
立创商城:
1uH ±30% 2A 58mΩ
贸泽:
Fixed Inductors 1uH
e络盟:
TDK VLS3015ET-1R0N 表面贴装功率电感器, 绕线铁氧体, VLS-E Series, 1 µH, 2.1 A, 2.2 A, 屏蔽, 0.058 ohm 新
艾睿:
This power VLS3015ET-1R0N surface mount inductor from TDK is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 1M Hz. This product is 3.1 mm long, 1.5 mm tall and 3.1 mm deep. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 2.1Typ A with a maximum resistance of 58m Ohm. It has an inductance of 1u H.
安富利:
Ind Power Shielded Wirewound 1uH 30% 1MHz 2.1A 1212 T/R
Verical:
Inductor Power Shielded Wirewound 1uH 30% 1MHz Ferrite 2.1A 0.058Ohm DCR 1212 T/R
Newark:
# TDK VLS3015ET-1R0N Surface Mount Power Inductor, VLS-E Series, 1 H, 30%, Shielded, 0.058 ohm, 2.1 A
Win Source:
FIXED IND 1UH 2A 58 MOHM SMD
额定电流 2 A
容差 ±30 %
电感 1 µH
产品系列 VLS-E
电感公差 ±30 %
测试频率 1 MHz
电阻DC) ≤58 mΩ
工作温度Max 105 ℃
工作温度Min 40 ℃
电阻DC Max 0.058 Ω
安装方式 Surface Mount
封装 1212
长度 3 mm
宽度 3 mm
高度 1.5 mm
封装 1212
工作温度 -40℃ ~ 105℃
产品生命周期 Not Recommended
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99"
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VLS3015ET-1R0N TDK 东电化 | 当前型号 | 当前型号 |
VLS3015T-1R0N2R0 东电化 | 类似代替 | VLS3015ET-1R0N和VLS3015T-1R0N2R0的区别 |
ELLVEG1R0N 松下 | 功能相似 | VLS3015ET-1R0N和ELLVEG1R0N的区别 |
ELLVGG1R0N 松下 | 功能相似 | VLS3015ET-1R0N和ELLVGG1R0N的区别 |
