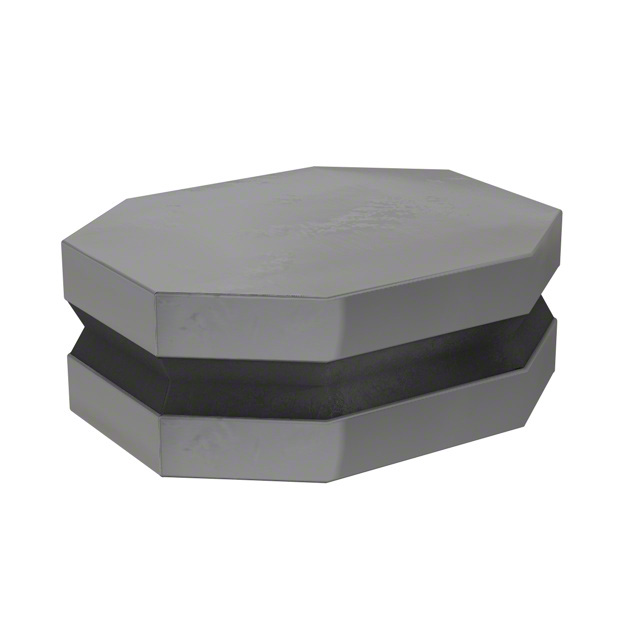

VLS2016-E 系列磁性屏蔽线绕电感器VLS2016-E 系列具有高磁性屏蔽结构且与高密度安装兼容薄型产品系列,具有最大 0.8mm、0.95mm、1.0mm、1.2mm 和 1.5mm 的高度,因此可用于不同用途 应用包括:智能手机、平板电脑终端、HDD、SSD、DVC、DSC、移动显示面板、便携式游戏设备和紧凑型电源模块 ### TDK 非标准 SMT 电感器(扼流圈)
固定器
立创商城:
1uH ±30% 1.5A 93mΩ
得捷:
FIXED IND 1UH 1.5A 93 MOHM SMD
欧时:
TDK VLS-E 系列 屏蔽 铁氧体芯材 1 μH 绕线贴片电感器 VLS201612ET-1R0N, 1.5A Idc, 93mΩ最大直流电阻
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power VLS201612ET-1R0N surface mount inductor from TDK to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 1u H. This SMD inductor has a maximum DC current of 1.65Typ A with a maximum resistance of 93m Ohm. This product is 2.1 mm long, 1.2 mm tall and 1.7 mm deep. This device is made with wirewound technology. Its test frequency is 1M Hz.
安富利:
Ind Power Shielded Wirewound 1uH 30% 1MHz 1.65A 0806 T/R
Chip1Stop:
Ind Power Shielded Wirewound 1uH 30% 1MHz 1.65A 0806 T/R
Verical:
Inductor Power Shielded Wirewound 1uH 30% 1MHz Ferrite 1.65A 0.093Ohm DCR 0806 T/R
额定电流 1.65 A
容差 ±30 %
电感 1 µH
电感公差 ±30 %
测试频率 1 MHz
电阻DC) ≤93 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.093 Ω
安装方式 Surface Mount
封装 0806

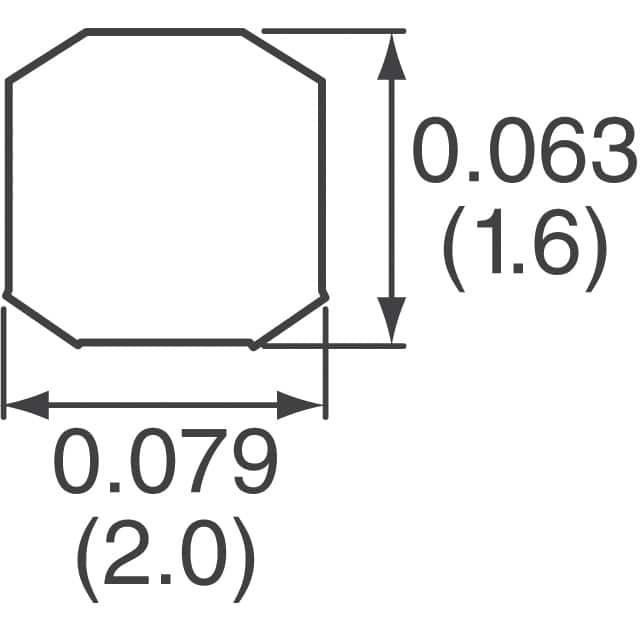

长度 2 mm
宽度 1.6 mm
高度 1.2 mm
封装 0806
工作温度 -40℃ ~ 105℃
产品生命周期 Not For New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VLS201612ET-1R0N TDK 东电化 | 当前型号 | 当前型号 |
SRN2012-1R0M 伯恩斯 | 功能相似 | VLS201612ET-1R0N和SRN2012-1R0M的区别 |
