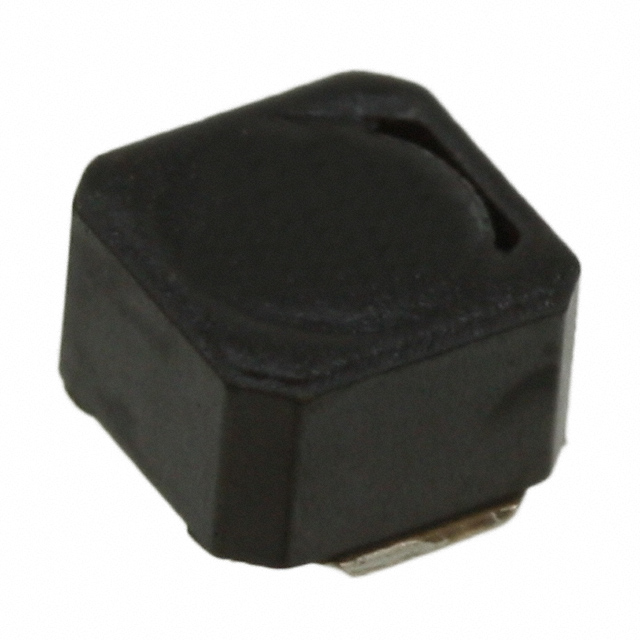

TDK VLCF4028T-330MR61-2 表面贴装功率电感器, VLCF系列, 33 µH, ± 20%, 屏蔽, 0.35 ohm, 740 mA
固定器
得捷:
FIXED IND 33UH 610MA 350MOHM SMD
立创商城:
33uH ±20% 610mA 300mΩ
贸泽:
Fixed Inductors 33uH
e络盟:
功率电感SMD, 33 µH, 740 mA, 屏蔽, 610 mA, VLCF系列, 4mm x 4mm x 2.8mm
艾睿:
An ideal space-saving electronic component is this power VLCF4028T-330MR61-2 surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 4.1 mm long, 2.8 mm tall and 4.1 mm deep. This SMD inductor has a maximum DC current of 740mA typ with a maximum resistance of 350m Ohm. This device is made with wirewound technology. It has a tolerance of 20%. Its test frequency is 100K Hz. It has an inductance of 33u H.
安富利:
Ind Power Shielded Wirewound 33uH 20% 100KHz 610mA 1515 Blister T/R
富昌:
VLCF 系列 33 uH 20% 0.61 A 屏蔽 SMD 功率电感
Verical:
Inductor Power Shielded Wirewound 33uH 20% 100KHz Ferrite 0.74A 0.35Ohm DCR 1515 T/R
Newark:
# TDK VLCF4028T-330MR61-2 Surface Mount Power Inductor, VLCF Series, 33 H, 20%, Shielded, 0.35 ohm, 740 mA
Win Source:
33μH Shielded Wirewound Inductor 610mA 350 mOhm Max Nonstandard
额定电流 610 mA
容差 ±20 %
电感 33 µH
产品系列 VLCF
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤350 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.35 Ω
安装方式 Surface Mount
封装 1515
长度 4 mm
宽度 4 mm
高度 2.8 mm
封装 1515
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
