1212 1uH ±30% 2.2A
Inductor Power Shielded Wirewound 1uH 30% 1MHz 2.2A 58mOhm DCR 1212 T/R
得捷:
FIXED IND 1UH 2A 58 MOHM SMD
艾睿:

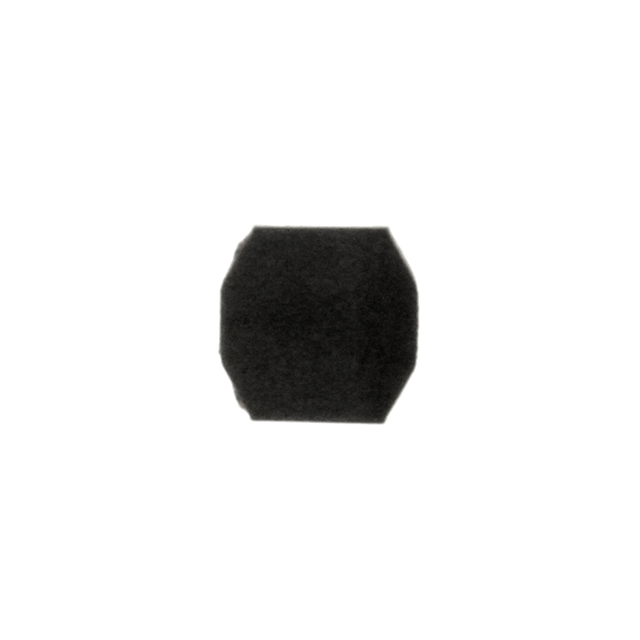

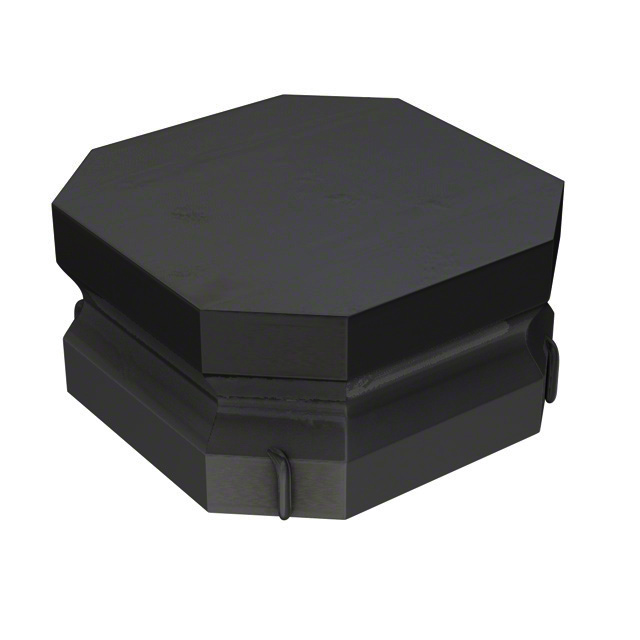

Make any circuit look clean and compact using this power VLS3015T-1R0N2R0 surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its test frequency is 1M Hz. This product is 3.1 mm long, 1.5 mm tall and 3.1 mm deep. It has an inductance of 1u H. This SMD inductor has a maximum DC current of 2.2Typ A with a maximum resistance of 58m Ohm. This device is made with wirewound technology.
安富利:
Ind Power Shielded Wirewound 1uH 30% 1MHz 2.2A 1212 T/R
Chip1Stop:
Ind Power Shielded Wirewound 1uH 30% 1MHz 2.2A 1212 T/R
Verical:
Inductor Power Shielded Wirewound 1uH 30% 1MHz 2.2A 0.058Ohm DCR 1212 T/R
MASTER:
Inductor Power Shielded Wirewound 1uH 30% 1MHz 2.2A 58mOhm DCR 1212 T/R
Online Components:
Inductor Power Shielded Wirewound 1uH 30% 1MHz 2.2A 58mOhm DCR 1212 T/R
Electro Sonic:
Inductor Power Shielded Wirewound 1uH 30% 1MHz 2.2A 58mOhm DCR 1212 T/R
额定电流 2 A
容差 ±30 %
电感 1 µH
电感公差 ±30 %
测试频率 1 MHz
电阻DC) ≤58 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 58 mΩ
安装方式 Surface Mount
封装 1212
长度 3 mm
宽度 3 mm
高度 1.5 mm
封装 1212
工作温度 -40℃ ~ 105℃
产品生命周期 Not Recommended
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8532240020
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VLS3015T-1R0N2R0 TDK 东电化 | 当前型号 | 当前型号 |
VLS3015ET-1R0N 东电化 | 类似代替 | VLS3015T-1R0N2R0和VLS3015ET-1R0N的区别 |
