VLCF4028T-100M1R0-2

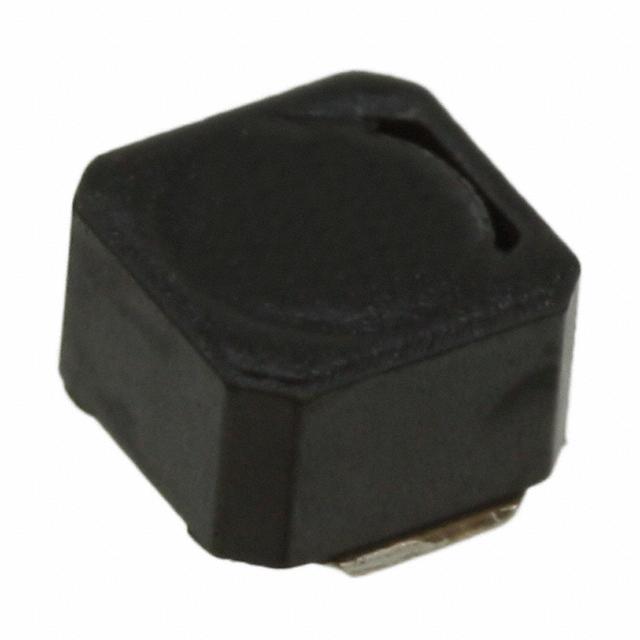

TDK  VLCF4028T-100M1R0-2  表面贴装功率电感器, VLCF系列, 10 µH, ± 20%, 屏蔽, 0.14 ohm, 1.45 A

固定器

得捷:
FIXED IND 10UH 1.06A 140MOHM SMD

立创商城:
10uH ±20% 1.06A 120mΩ

e络盟:
功率电感SMD, 10 µH, 1.45 A, 屏蔽, 1.06 A, VLCF系列, 4mm x 4mm x 2.8mm

艾睿:
An ideal space-saving electronic component is this power VLCF4028T-100M1R0-2 surface mount inductor from TDK. This SMD inductor has an operating temperature range of -40 °C to 105 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device utilizes wirewound technology. It has a tolerance of 20%. This product is 4.1 mm long, 2.8 mm tall and 4.1 mm deep. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 1.45Typ A with a maximum resistance of 140m Ohm. It has an inductance of 10u H.

安富利:
Ind Power Shielded Wirewound 10uH 20% 100KHz 1.06A 1515 Blister T/R

富昌:
VLCF Series 10 uH ±20 % 1.06 A 0.14 Ohm SMT Shielded Wirewound Inductor

Verical:
Inductor Power Shielded Wirewound 10uH 20% 100KHz Ferrite 1.45A 0.14Ohm DCR 1515 T/R

Newark:
# TDK  VLCF4028T-100M1R0-2  Surface Mount Power Inductor, VLCF Series, 10 H, 20%, Shielded, 0.14 ohm, 1.45 A
