VISHAY VLPC1201A2J 发光二极管模块, 冷白色, 2100LM

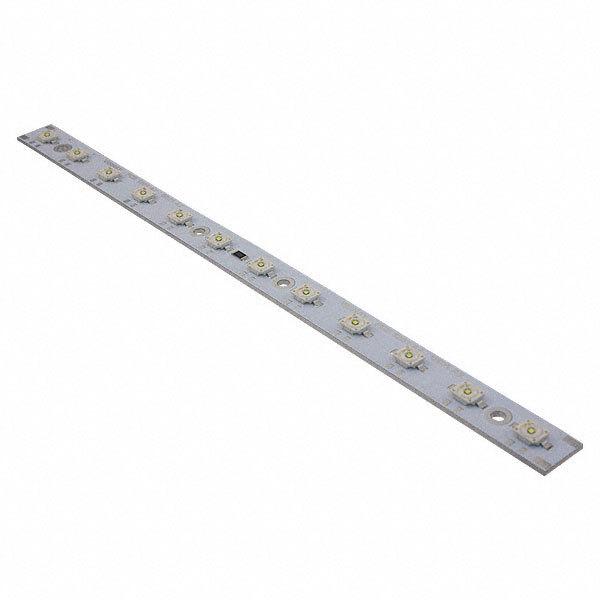

The is a 42V high brightness Power Module with 12 LEDs and metal core. This cool while strip LED module features InGaN technology, prepared to divide in half strips by cutting. Cu conductive top layer, color binning and LM80 certified LEDs.
额定功率 32.2 W
输入电压DC 42.0 V
正向电压 75 V
视角 160°
测试电流 700 mA
正向电流 700 mA
输入电压 42 V
引脚数 4
封装 Module
长度 240 mm
宽度 10.5 mm
高度 4.5 mm
封装 Module
工作温度 -40℃ ~ 85℃
产品生命周期 End of Life
包装方式 Each
制造应用 LED Lighting, 工业, Commercial, 车用, 商业, Automotive, 发光二极管照明, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
