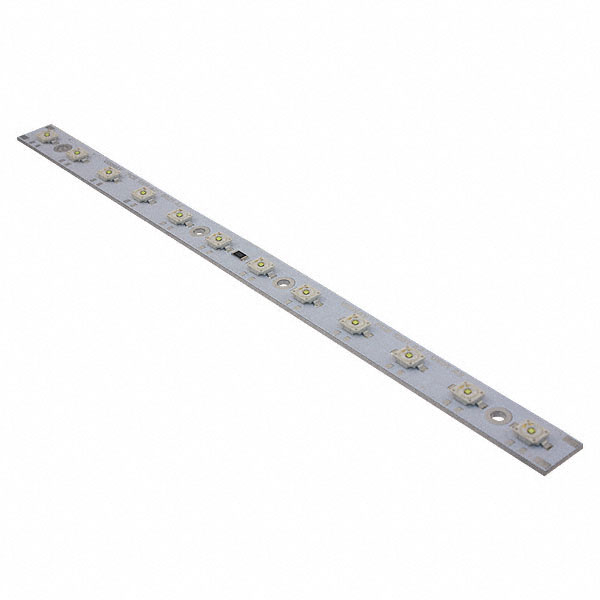

The POWER series High Brightness Power Module with metal core. Colour temperature range of 5000K to 7000K. It is suitable for tunnel lights, reading lamp, table lamp and general lighting application.
.
Single side/single layer PCB
.
Shiny white surface
.
Prepared to divide in half strips also, by cutting
.
Isolation layer prepreg 100µm
.
Colour binning
VLPC0601A2中文资料参数规格
技术参数
额定功率16.1 W
输入电压DC21.0 V
正向电压21 V
视角160°
输入功率16.1 W
测试电流700 mA
正向电流700 mA
输入电压21 V
封装参数
封装Module
外形尺寸
长度240 mm
宽度10.5 mm
高度4.5 mm
封装Module
物理参数
工作温度-40℃ ~ 85℃
其他
产品生命周期End of Life
包装方式Box
制造应用Lighting, Building Automation, Automotive, LED Lighting
