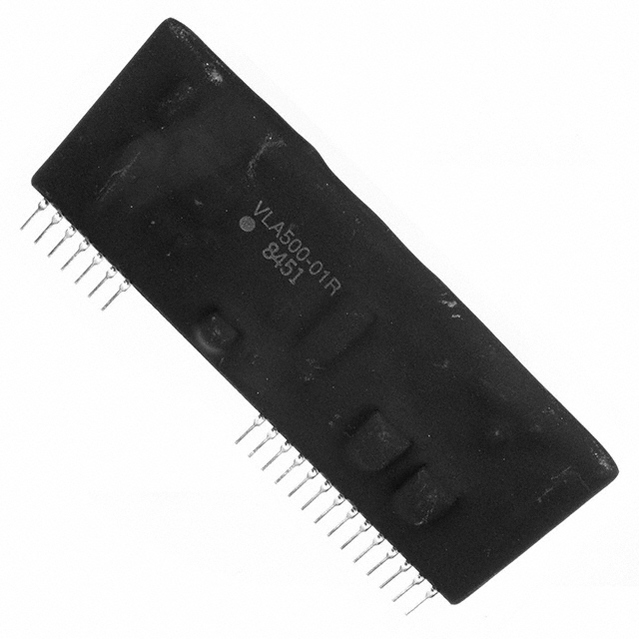

IGBT Gate Driver 21Pin SIP
Description:
is a hybrid integrated circuit designed for driving IGBT modules. This device is a fully
isolated gate drive circuit consist ing of an optimally isolated gate drive amplifier and an isolated
DC-to-DC converter. The gate driver provides an over-current protection function based on
desaturation detection.
Features:
Built-in Isolated DC-to-DC Converter for Gate Drive
SIP Outline Allows More Space on Mounting Area
Built-in Short-Circuit Protection With Fault Output
Variable Fall Time on Short Circuit Protection
Electrical Isolation Voltage Between Input and Output 2500 Vrms for 1 Minute
TTL Compatible Input
Application:
To drive IGBT modules for inverter or AC servo systems applications
Recommended IGBT Modules:
600V module up to 600A
1200V module up to 1400A
