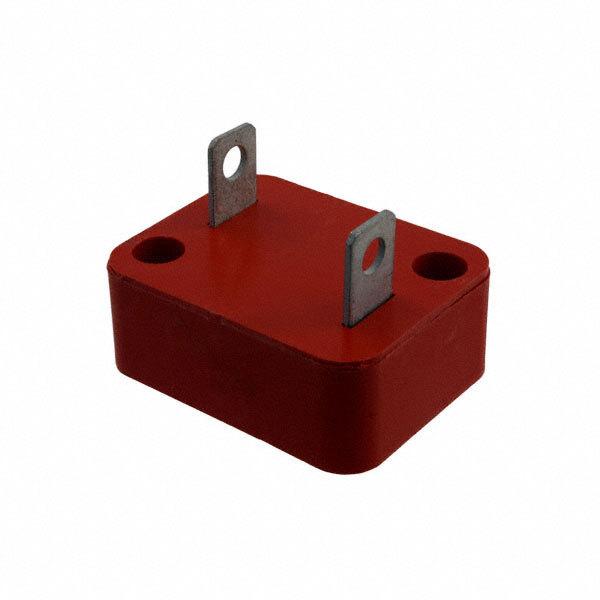

LITTELFUSE V751DB40 压敏变阻器, MOV, 970V, 2KV, 40MM 片式
Similar to a diode this MOV manufactured from is a nonlinear component. This device"s clamping current is 200 A and clamping voltage is 2000 V. Its maximum surge current is 40000 A. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This varistor has a voltage of 1200 V. This device is made with metal oxide technology. The maximum AC voltage rating is 750 VAC and the maximum DC voltage rating is 970 VDC. Its capacitance value is 0.0018uF. This product is 60.3 mm long, 41 mm tall and 46.8 mm deep.
额定电压DC 970 V
额定电压AC 750 V
电容 1800 pF
电路数 1
钳位电压 2 kV
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 970 V
额定电压AC Max 750 V
安装方式 Surface Mount
封装 Disc 40mm
长度 60.3 mm
宽度 46.8 mm
高度 41 mm
封装 Disc 40mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
