VOL6xxA 系列,Vishay SemiconductorVishay VOL617A 和 VOL628A 系列低输入电流光耦合器,具有光电晶体管输出,可防止设备用户被电击,并防止这些系统内的微处理器损坏被电压峰值损坏。VOL617A 和 VOL628A 系列提供高达 5000Vrms 的电压隔离。 应用包括:交流适配器、开关模式电源、可编程逻辑控制器、工业控制、电信系统、智能仪表、办公设备、互联网上的电源和太阳能中的隔离。 光耦合器 VOL617A 和 VOL628A 的工作温度范围高达 110℃。 ### 光耦合器,Vishay Semiconductor
**Optocoupler, Transistor Output, VOL6xxA Series, **
Vishay low input current optocoupler with a phototransistor output VOL617A, VOL628A series protect equipment users from electrical shocks and protect the microprocessors within these systems from being damaged by voltage spikes.
得捷:

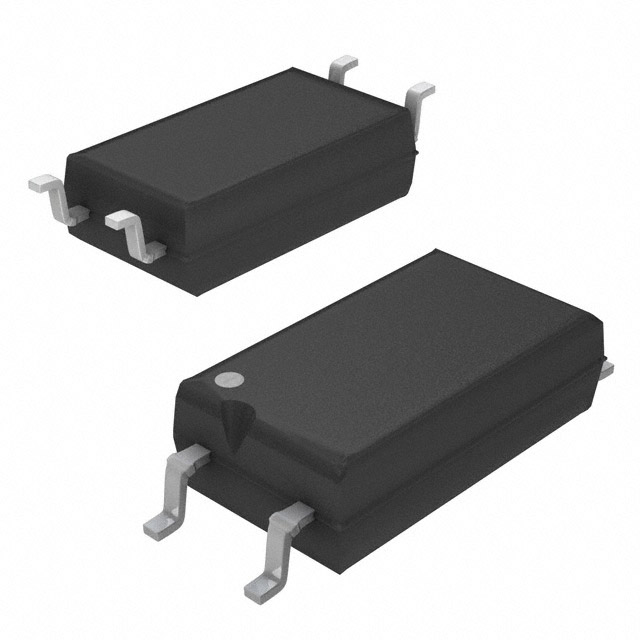

OPTOISOLATOR 5KV TRANS 4-LSOP
艾睿:
Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SOP
安富利:
* Low profile package * High collector emitter voltage, VCEO = 80 V * Isolation test voltage, 5000 VRMS * Isolation voltage VIORM = 1050 Vpeak * Low coupling capacitance * High common mode transient immunity
富昌:

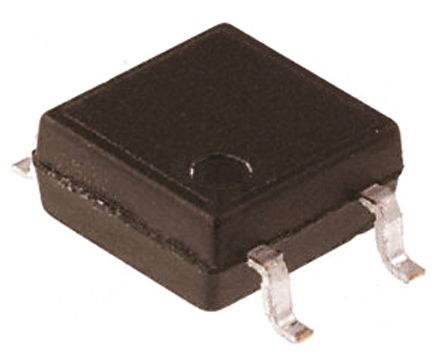

VOL618A 系列 5000 Vrms 80 V 表面贴装 光耦合器 光电晶体管 - LSOP-4
Verical:
Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SOP
上升/下降时间 3.5µs, 5µs
输出电压 80 V
通道数 1
针脚数 4
正向电压 1.16 V
耗散功率 150 mW
上升时间 3.5 µs
隔离电压 5000 Vrms
正向电流 60 mA
输出电压Max 80 V
输入电流Min 60 mA
正向电压Max 1.5 V
正向电流Max 60 mA
下降时间 5 µs
工作温度Max 110 ℃
工作温度Min -55 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 4
封装 SMD-4
高度 2 mm
封装 SMD-4
工作温度 -55℃ ~ 110℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
