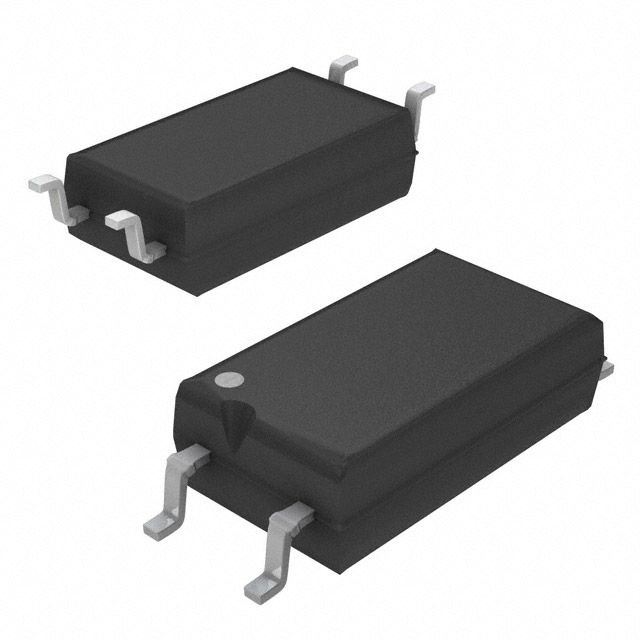

VISHAY VOL618A-2X001T 光电耦合器, 晶体管输出, 低输入电流, 1通道, LSOP, 4 引脚, 60 mA, 5 kV, 63 %
The is a 1-channel 4-pin Phototransistor Output Optocoupler has a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector. It features a high current transfer ratio, low coupling capacitance and high isolation voltage. The coupling device is designed for signal transmission between two electrically separated circuits.
- .
- Low input current
- .
- Low coupling capacitance
- .
- High common-mode transient immunity
- .
- 80V High collector-emitter voltage
- .
- 1050V Peak isolation voltage
上升/下降时间 3.5µs, 5µs
输出电压 80.0 V
通道数 1
针脚数 4
正向电压 1.16 V
输入电流 60.0 mA
耗散功率 150 mW
上升时间 3.5 µs
隔离电压 5 kV
正向电流 60 mA
输出电压Max 80 V
正向电压Max 1.5 V
正向电流Max 60 mA
下降时间 5 µs
工作温度Max 110 ℃
工作温度Min -55 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 4
封装 SMD-4
高度 2 mm
封装 SMD-4
工作温度 -55℃ ~ 110℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Automation & Process Control, Industrial, Communications & Networking, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
