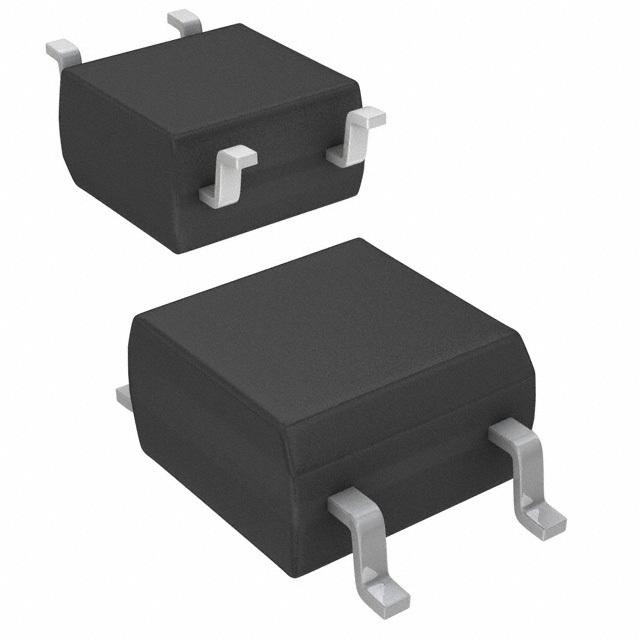

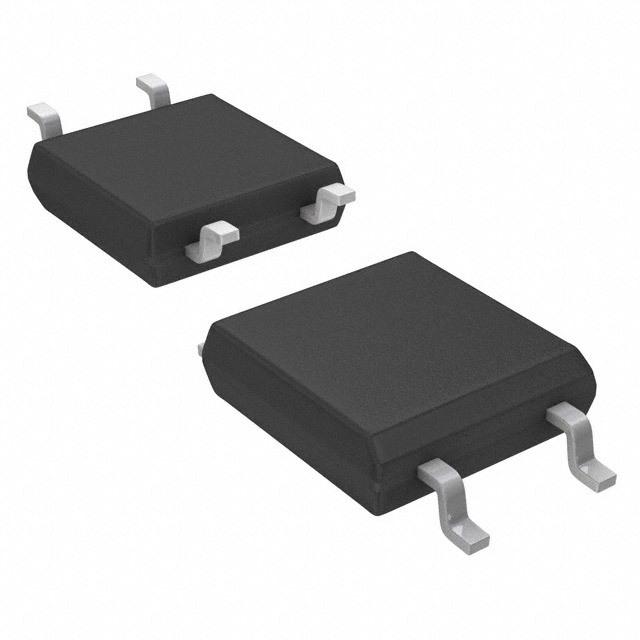

VISHAY VOM617A-X001T 光电耦合器, 晶体管输出, 低输入电流, 1通道, SOP, 4 引脚, 60 mA, 3.75 kV, 50 %
The is a 1-channel 4-pin Phototransistor Output Optocoupler has a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector. It features a high current transfer ratio, low coupling capacitance and high isolation voltage. This coupling device is designed for signal transmission between two electrically separated circuits.
上升/下降时间 3 µs
通道数 1
针脚数 4
正向电压 1.1 V
耗散功率 170 mW
上升时间 3 µs
隔离电压 3750 Vrms
正向电流 60 mA
输出电压Max 80 V
输入电流Min 60 mA
正向电压Max 1.6 V
正向电流Max 60 mA
下降时间 3 µs
工作温度Max 110 ℃
工作温度Min -55 ℃
耗散功率Max 170 mW
安装方式 Surface Mount
引脚数 4
封装 SOP-4
高度 2 mm
封装 SOP-4
工作温度 -55℃ ~ 110℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Communications & Networking, Lighting, Signal Processing, Alternative Energy
RoHS标准 RoHS Compliant
含铅标准 Lead Free
