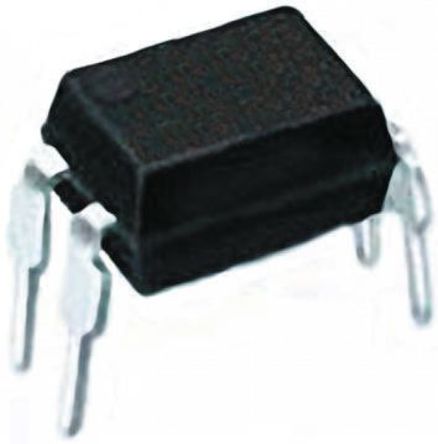

VO618A-2

VISHAY  VO618A-2  光电耦合器, 晶体管输出, 低输入电流, 1通道, DIP, 4 引脚, 60 mA, 5.3 kV, 63 %

The is a 1-channel 4-pin Phototransistor Output Optocoupler features high current transfer ratio, low coupling capacitance and high isolation voltage. This coupler has a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector. The coupling device is designed for signal transmission between two electrically separated circuits. The coupler is end-stackable with 2.54mm spacing. Creepage and clearance distances of >8mm. This version complies with IEC 60950 DIN VDE 0805 for reinforced insulation up to an operation voltage of 400VRMS or DC. It is suitable for AC adaptors, PLC and game consoles.

.

High reliability

.

Low input current

.

Good CTR linearity depending on forward current

.

Low saturation voltage

.

Fast switching time

.

Low CTR degradation

.

Temperature stable

.

Low coupling capacitance

.

End stackable, 0.100" 2.54mm spacing

.

High common-mode interference immunity

.

80V High collector emitter voltage
