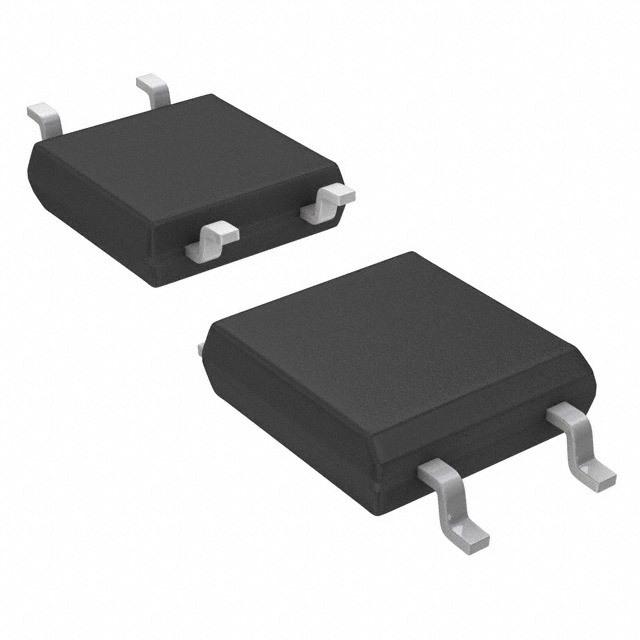

VISHAY VOM618A-8X001T 光电耦合器, 晶体管输出, 低输入电流, 1通道, SOP, 4 引脚, 60 mA, 3.75 kV, 130 %
The is a 1-channel 4-pin Phototransistor Output Optocoupler has a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector. It features a high current transfer ratio with low input current, low coupling capacitance and high isolation voltage. It is designed for signal transmission between two electrically separated circuits. It is also suitable for PLCs, lighting control system, solar inverters and AC drives.
上升/下降时间 5µs, 4µs
输出电压 80.0 V
通道数 1
针脚数 4
正向电压 1.1 V
输入电流 60.0 mA
耗散功率 170 mW
隔离电压 3.75 kV
正向电流 60 mA
输出电压Max 80 V
输入电流Min 60 mA
正向电流Max 60 mA
工作温度Max 110 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 4
封装 SOP-4
封装 SOP-4
工作温度 -55℃ ~ 110℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Motor Drive & Control, Lighting, Communications & Networking, Alternative Energy
RoHS标准 RoHS Compliant
含铅标准 Lead Free
