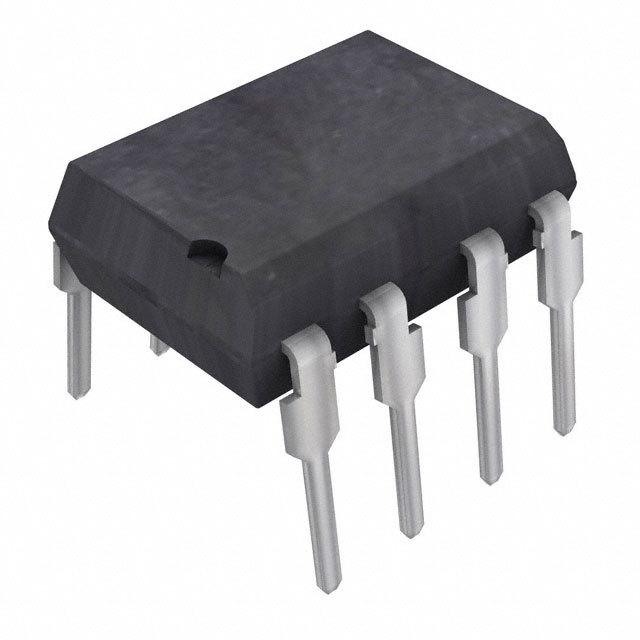

光伏双MOSFET驱动固态继电器 Dual Photovoltaic MOSFET Driver Solid State Relay
DESCRIPTION
The /AAC photovoltaic MOSFET driver consists of two LEDs optically coupled to two photodiode arrays. The photodiode array provides a floating source with adequate voltage and current to drive high-power MOSFET transistors. Optical coupling provides a high I/O isolation voltage. In order to turn the MOSFET off, an external resistance gate-to-source is required for gate discharge.
FEATURES
• High open circuit voltage, up to 14.6 V typical
• High short circuit current, up to 42 µA typical
• Isolation test voltage 5300 VRMS
• Logic compatible input
• High reliability
• Lead Pb-free component
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
APPLICATIONS
• High-side driver
• Solid state relays
• Floating power supply
• Power control
• Data acquisition
• ATE
• Isolated switching
