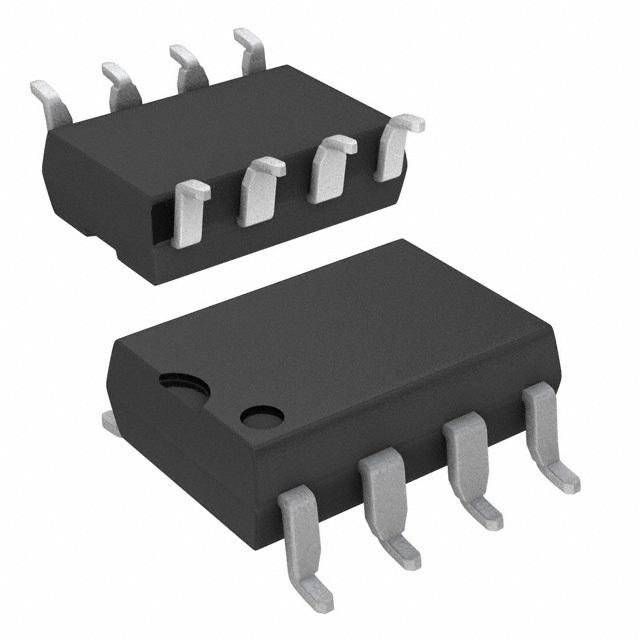

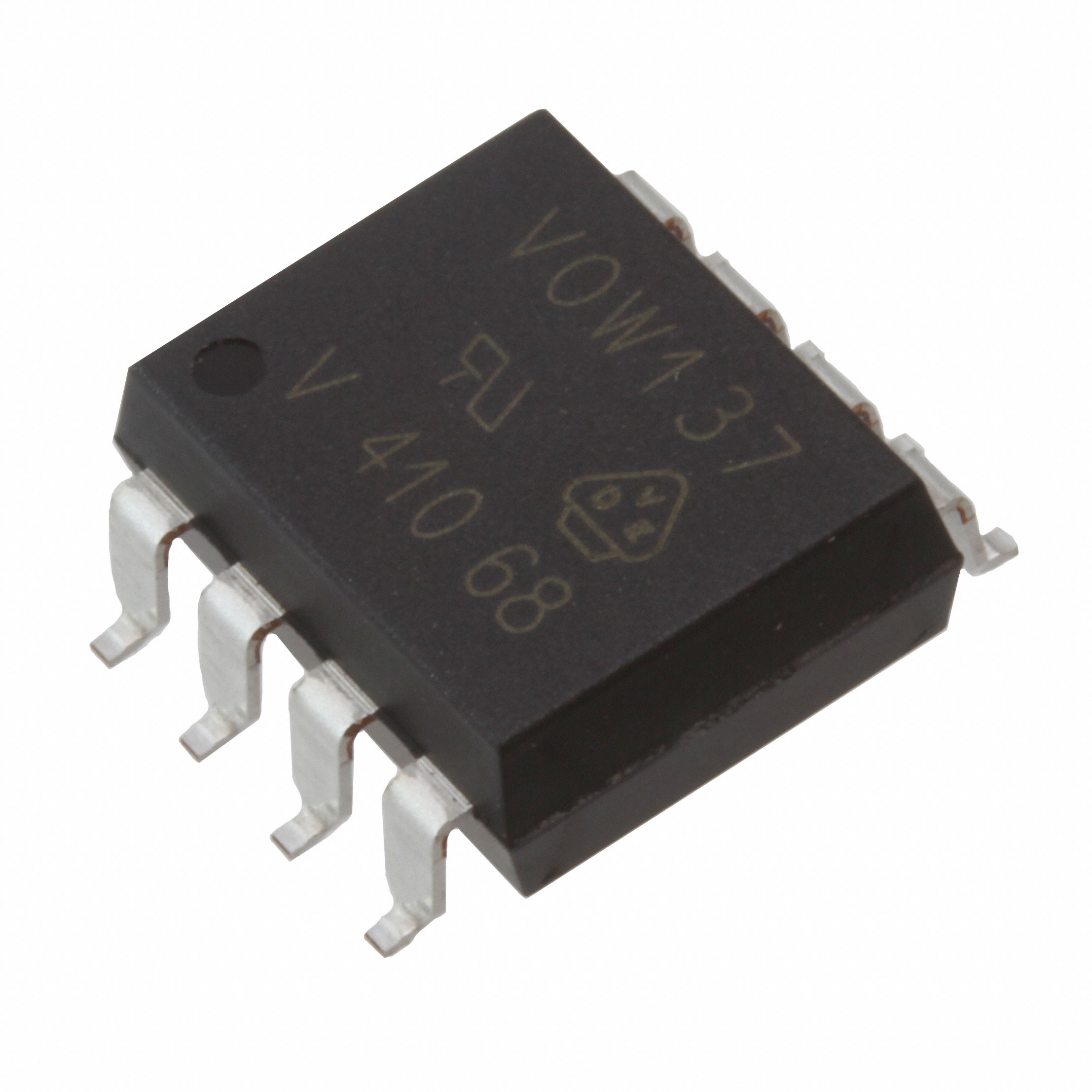

VISHAY VOW137-X017T 光电耦合器, 数字式, 5.3KV, SMDIP-8
The is a 1-channel 8-pin High Speed Optocoupler consists of a GaAlAs infrared emitting diode, optically coupled with an integrated photodetector. The detector incorporating an integral Faraday shield provides a high level of noise isolation, required by high power switching applications. It features high level of isolation distance and exhibiting an external creepage distance of >10mm. It is ideal for applications with working voltages exceeding 1000V. It is suitable for solar inverters, welding equipment, ground loop elimination and noise isolation of sensitive circuits.
上升/下降时间 14ns, 7ns
输出电流 50 mA
通道数 1
针脚数 8
正向电压 1.4 V
耗散功率 85 mW
上升时间 14 ns
隔离电压 5.3 kV
正向电流 20 mA
正向电压Max 1.7 V
正向电流Max 20 mA
下降时间 0.007 µs
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 85 mW
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 8
封装 SMD-8
长度 11.3 mm
宽度 9 mm
高度 3.9 mm
封装 SMD-8
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Motor Drive & Control, Communications & Networking, Industrial, Alternative Energy
RoHS标准 RoHS Compliant
含铅标准 Lead Free
