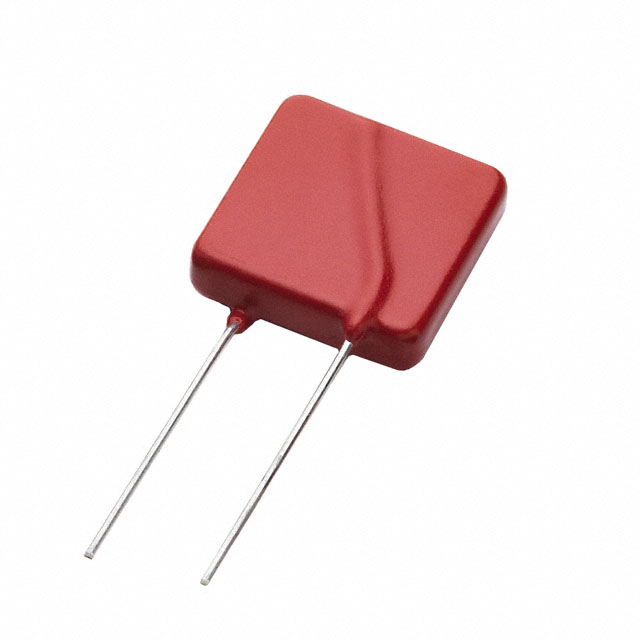

LITTELFUSE V25S750P 金属氧化物压敏变阻器MOV, 750V, 径向引线
This MOV from is a nonlinear resistor, the resistance of it will change when different voltages are applied to it. Its maximum surge current is 22000 A. This device"s clamping current is 100 A and clamping voltage is 1950 V. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This varistor has a voltage of 1320 V. This product is 28 mm long, 32.5 mm tall and 10.7 mm deep. Its capacitance value is 550pF. The maximum AC voltage rating is 750 VAC and the maximum DC voltage rating is 970 VDC. This device is made with metal oxide technology.
额定电压DC 970 V
额定电压AC 750 V
额定电流 1 mA
绝缘电阻 1000 MΩ
电容 550 pF
电路数 1
钳位电压 1.95 kV
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 970 V
额定电压AC Max 750 V
安装方式 Through Hole
封装 Radial
长度 32.5 mm
宽度 28 mm
高度 32.5 mm
封装 Radial
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
