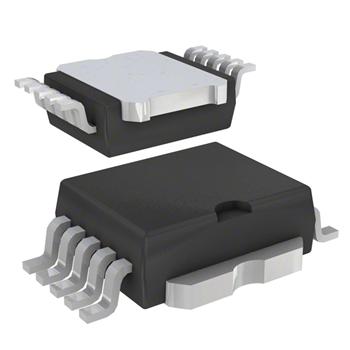

高侧智能功率固态继电器 HIGH SIDE SMART POWER SOLID STATE RELAY
DESCRIPTION
The is a monolithic device made using STMicroelectronics VIPower Technology, intended for driving resistive or inductive loads with one side grounded. Built-in thermal shut-down protects the chip from over temperature and short circuit. The open drain diagnostic output indicates: open
load in off state, and in on state, output shorted to VCC and overtemperature. Fast emagnetization
of inductive loads is archivied by negative -18V load voltage at turn-off.
■ MAXIMUM CONTINUOUS OUTPUT
CURRENT #:9 A @ Tc=85°C
■ 5 V LOGIC LEVEL COMPATIBLE INPUT
■ THERMAL SHUT-DOWN
■ UNDER VOLTAGE PROTECTION
■ OPEN DRAIN DIAGNOSTIC OUTPUT
■ INDUCTIVE LOAD FAST DEMAGNETIZATION
■ VERY LOW STAND-BY POWER DISSIPATION
