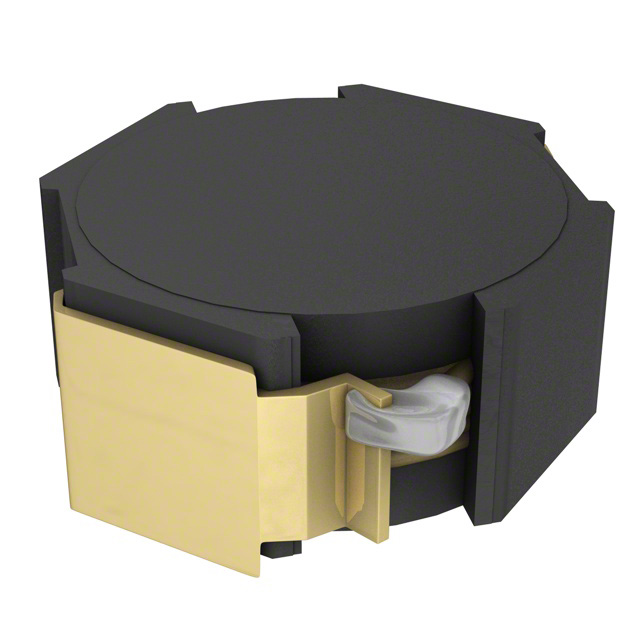

TDK VLF10040T-6R8N4R5 表面贴装功率电感器, VLF系列, 6.8 µH, ± 30%, 屏蔽, 0.0238 ohm, 4.5 A
固定器
得捷:
FIXED IND 6.8UH 4.5A 23.8MOHM SM
贸泽:
Fixed Inductors 6.8uH 30%
e络盟:
TDK VLF10040T-6R8N4R5 表面贴装功率电感器, VLF系列, 6.8 µH, ± 30%, 屏蔽, 0.0238 ohm, 4.5 A
艾睿:
This power VLF10040T-6R8N4R5 surface mount inductor from TDK is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 10.4 mm long, 4 mm tall and 10.1 mm deep. Its test frequency is 100K Hz. It has an inductance of 6.8u H. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 4.5Typ A with a maximum resistance of 23.8m Ohm.
安富利:
Ind Power Shielded Wirewound 6.8uH 30% 100KHz 4.5A T/R
富昌:
VLF Series 6.8 uH ±30 % 4.6 A 23.8 mOhm SMT Shielded Wirewound Inductor
Chip1Stop:
Inductor Power Shielded Wirewound 6.8uH 30% 100KHz Ferrite 4.5A 23.8mOhm DCR T/R
Verical:
Inductor Power Shielded Wirewound 6.8uH 30% 100KHz Ferrite 4.5A 0.0238Ohm DCR T/R
Newark:
# TDK VLF10040T-6R8N4R5 Surface Mount Power Inductor, VLF Series, 6.8 µH, 4.5 A, 4.6 A, Shielded, 0.0238 ohm
Win Source:
6.8μH Shielded Wirewound Inductor 4.5A 23.8 mOhm Max Nonstandard
额定电流 4.5 A
容差 ±30 %
电感 6.8 µH
产品系列 VLF-M-CA
电阻 19.8 mΩ
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤23.8 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.0238 Ω
安装方式 Surface Mount
引脚数 2

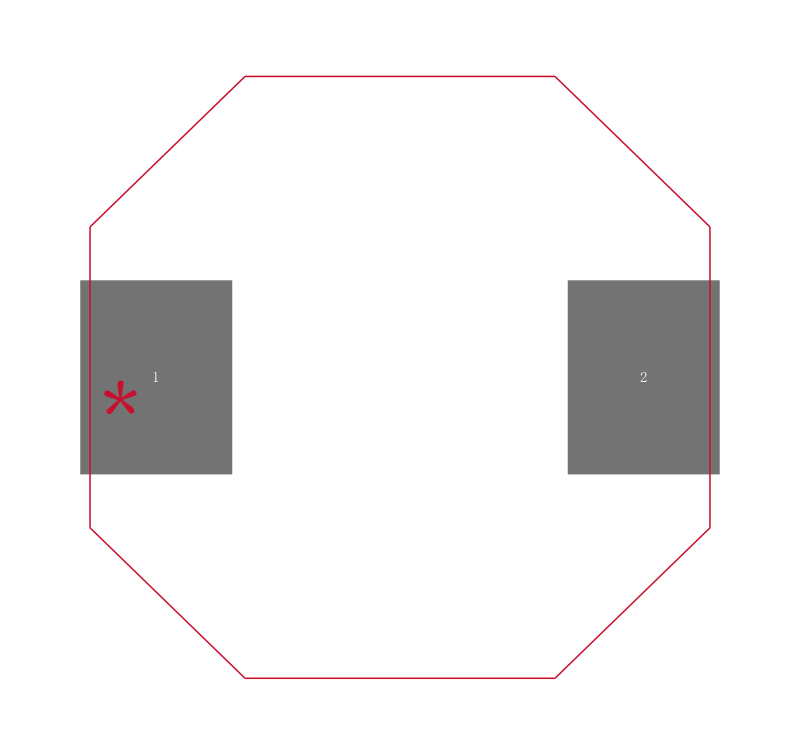

封装 10mm x 9.7mm x 4mm
长度 9.7 mm
宽度 10 mm
高度 4 mm
封装 10mm x 9.7mm x 4mm
工作温度 -40℃ ~ 105℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VLF10040T-6R8N4R5 TDK 东电化 | 当前型号 | 当前型号 |
CLF10040T-6R8N 东电化 | 功能相似 | VLF10040T-6R8N4R5和CLF10040T-6R8N的区别 |
