VRW68-10MJI

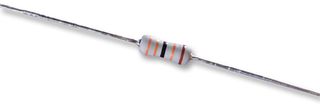

WELWYN  VRW68-10MJI  通孔电阻器, VRW系列, 10 Mohm, 1 W, ± 5%, 10 kV, 轴向引线

The VRW series from Welwyn are high voltage thick film resistor with robust flame proof coating. It has hot tin dipped copper wire material, this resistive thick film material is applied to high-grade ceramic rods. Tin-plated steel caps are force fitted and the termination wires are welded to the caps. The value is obtained by a helical cut in the film and finally the resistor body is protected by a cement coating. The terminations meet the requirements of IEC 68.2.21 strength and meets the requirements of IEC 115-1 Clause 4.17.3.2 solderability.

.

High pulse load capability

.

High working voltage to 10KV in compact size

.

Resistance range includes E24, E96 decade high ohmic range to 68Mohm

.

Power rating of 0.25W VRW25, 0.5W VRW37 and 1W VRW68

.

700V isolation voltage

.

Temperature coefficient of 200ppm/°C

.

1%, 2%, 5% resistance tolerances

.

Ambient temperature range from -55°C to 155°C

.

High voltage resistor
