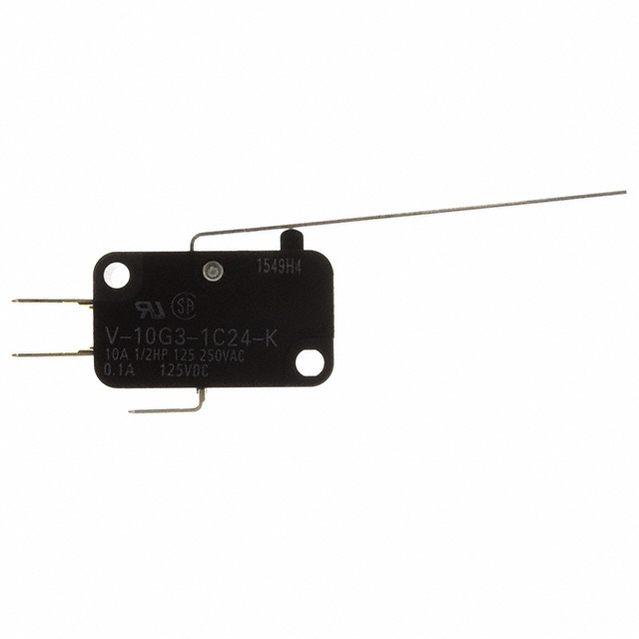

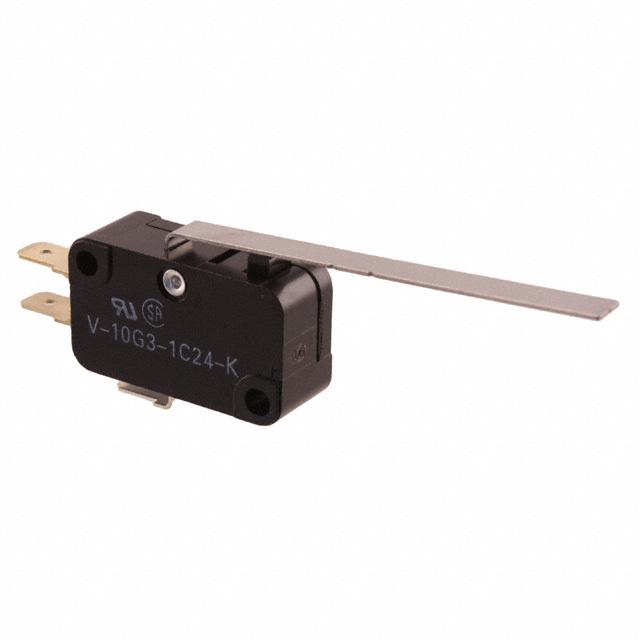

Switch Snap Action N.O./N.C. SPDT Long Hinge Lever Quick Connect 10A 250VAC 250VDC 248.57VA 0.34N Screw Mount
General Purpose Snap Action Switch
• Industry standard design with switching currents of 10A to 21A
• Widely used for applications where long life expectancy and high reliability is required.
• Choose from a variety of levers, terminals and operating forces.
• Right and Left Barrier options are available for the V-21 and V-16 models
• Heat resistant versions of the V-15 and V-10 are available.
• RoHS Compliant
艾睿:
Switch Snap Action N.O./N.C. SPDT Long Hinge Lever 10A 250VAC 250VDC 248.57VA 0.34N Screw Mount Quick Connect
Jameco:
Snap Action Switch N.O.-N.C. Single Pole Double Throw Long Hinge Lever Quick Connect 10 Amp 250 Volt AC 250 Volt 0.34n Screw Mount
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Long Hinge Lever Quick Connect 10A 250VAC 250VDC 0.34N Screw Mount
MASTER:
Switch Snap Action N.O./N.C. SPDT Long Hinge Lever Quick Connect 10A 250VAC 250VDC 248.57VA 0.34N Screw Mount
Online Components:
Switch Snap Action N.O./N.C. SPDT Long Hinge Lever Quick Connect 10A 250VAC 250VDC 248.57VA 0.34N Screw Mount
Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Long Hinge Lever Quick Connect 10A 250VAC 250VDC 248.57VA 0.34N Screw Mount
额定电压DC 250 V
接触器类型 Straight Lever
额定电流 10 A
触点类型 SPDT
额定电流Max 10A @250VAC, 8VDC
工作温度Max 80 ℃
工作温度Min -25 ℃
额定电压 250 V
额定电压DC Max 250 V
额定电压AC Max 250 V
安装方式 Chassis
长度 72.2 mm
宽度 10.3 mm
高度 28.5 mm
触点材质 Silver
工作温度 -25℃ ~ 80℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536507000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V-10G3-1C24-K Omron 欧姆龙 | 当前型号 | 当前型号 |
TMCGD6ST2740C C&K Components | 功能相似 | V-10G3-1C24-K和TMCGD6ST2740C的区别 |
TMCGD6ST1640C C&K Components | 功能相似 | V-10G3-1C24-K和TMCGD6ST1640C的区别 |
T27 C&K Components | 功能相似 | V-10G3-1C24-K和T27的区别 |
