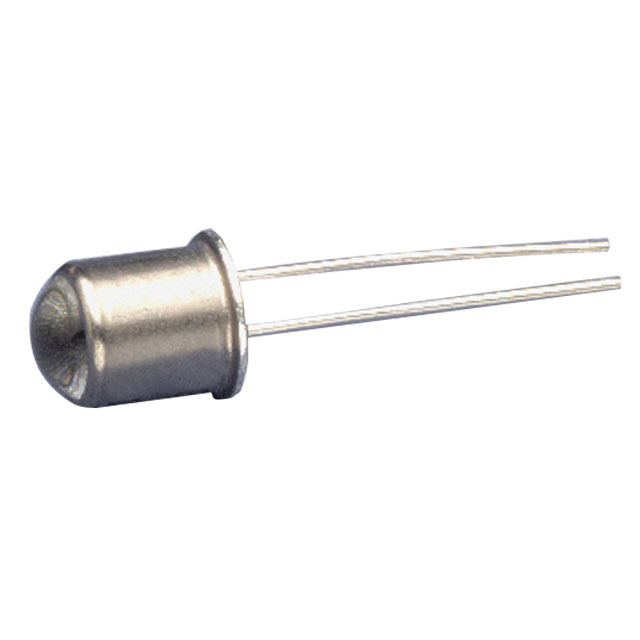

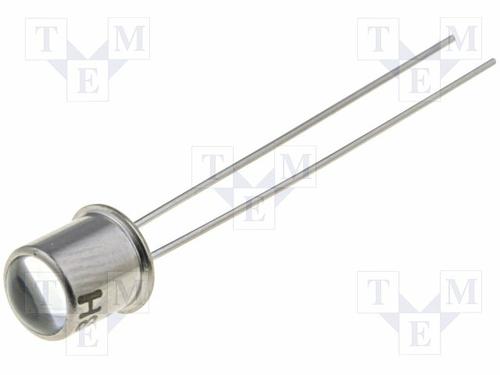

VTB1113H

EXCELITAS TECH  VTB1113H  光电二极管

The is a blue enhanced Silicon Photodiode with 1.6mm² active area designed for spectral response between 320 and 1100nm. This series of P on N silicon planar photodiode has been designed for optimum response through the visible part of the spectrum. This photodiode is primarily intended to be used in photovoltaic mode but may be used with a small reverse bias. It also been designed to exhibit very high shunt resistance, a characteristic which leads to low offsets when used in high gain trans-impedance op-amp circuits.
