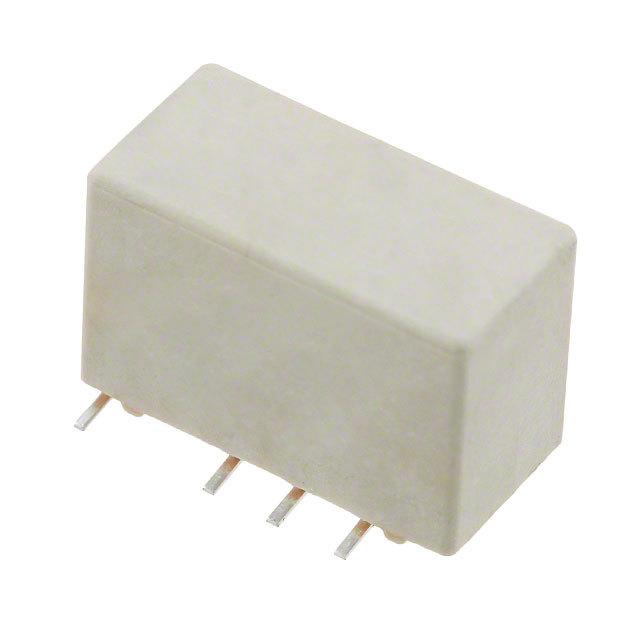

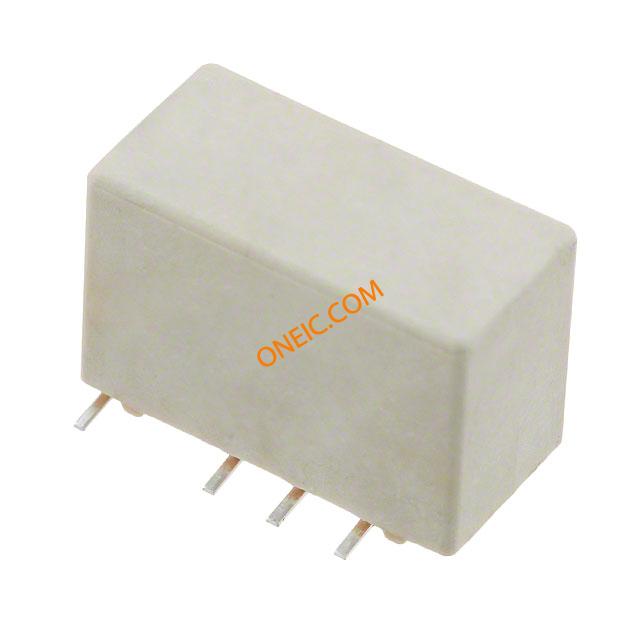

TE CONNECTIVITY / AXICOM V23079G2016B301 信号继电器, DPDT, 4VDC, 2A, SMD
Communications/Signal PC Board Relays
Product Highlights
V23079 / P2 Relay Series
DC Actuating System
Input Voltage = 4 VDC

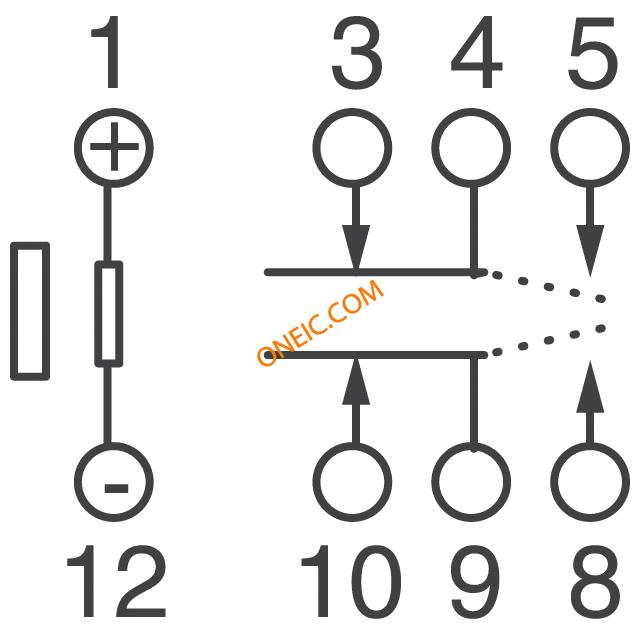

Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 2 Amps.
立创商城:
4VDC 2A 无锁存
得捷:
RELAY GEN PURPOSE DPDT 2A 4VDC
e络盟:
信号继电器, DPDT, 4VDC, 2A, SMD
艾睿:
Signal Relay 4VDC 2A DPDT14.6x7.4x9.9mm SMD Automotive Medical
Chip1Stop:
Electromechanical Relay DPDT 2A 4VDC 114Ohm Surface Mount
Verical:
Signal Relay 4VDC 2A DPDT 14.6mm 7.4mm 9.9mm Surface Mount Automotive Medical
MASTER:
Communications/Signal PC Board Relays
Online Components:
Communications/Signal PC Board Relays
绝缘电阻 >1000 MΩ
输入电压DC 4.00 V
触点类型 DPDT
触点额定电流 2.00 A
线圈电压 4 VDC
线圈电流 35 mA
线圈功率DC 140 mW
线圈电阻 114 Ω
线圈电压DC 4 V
线圈功率 140 mW
开关电流Max 2 a
工作温度Max 85 ℃
工作温度Min -40 ℃
接触电阻Max <50 mΩ
安装方式 Surface Mount
封装 -

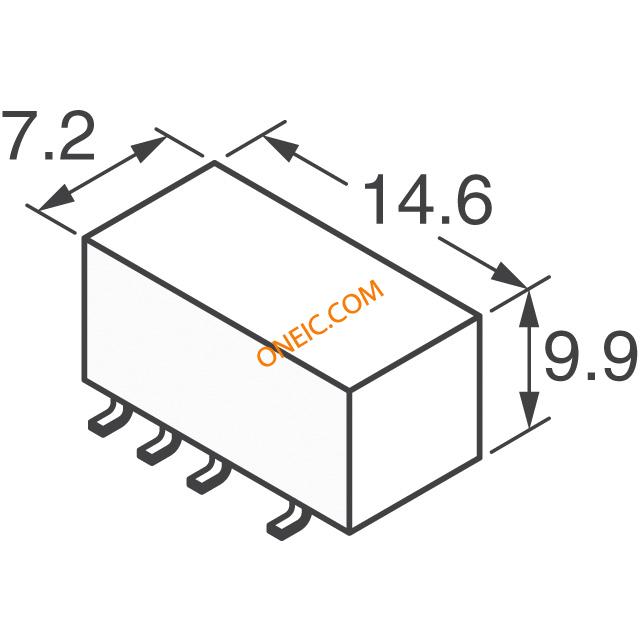

长度 14.6 mm
宽度 7.2 mm
高度 9.9 mm
封装 -
触点材质 Silver Nickel
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
