V511DA40

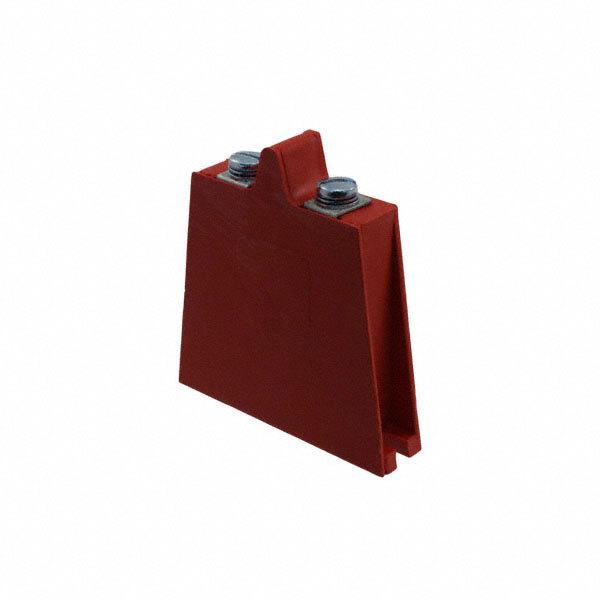

LITTELFUSE  V511DA40  金属氧化物压敏变阻器 MOV, 675V, 40000A

This MOV from is a nonlinear resistor, the resistance of it will change when different voltages are applied to it. Its maximum surge current is 40000 A. This device"s clamping current is 200 A and clamping voltage is 1350 V. This part has a pitch of 23 mm. This voltage dependent resistor has an operating temperature of -55 to 85 °C. Its capacitance value is 0.0025uF. This device is made with metal oxide technology. This product is 62 mm long, 67 mm tall and 15 mm deep. This varistor has a voltage of 820 V. The maximum AC voltage rating is 510 VAC and the maximum DC voltage rating is 675 VDC.
