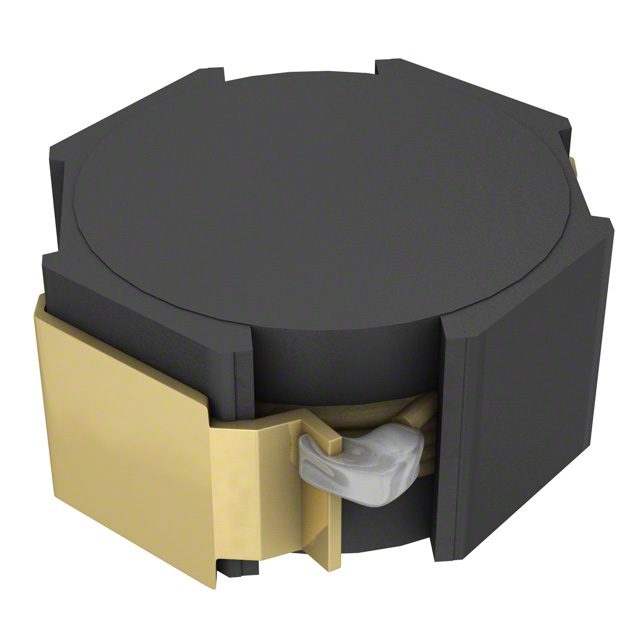

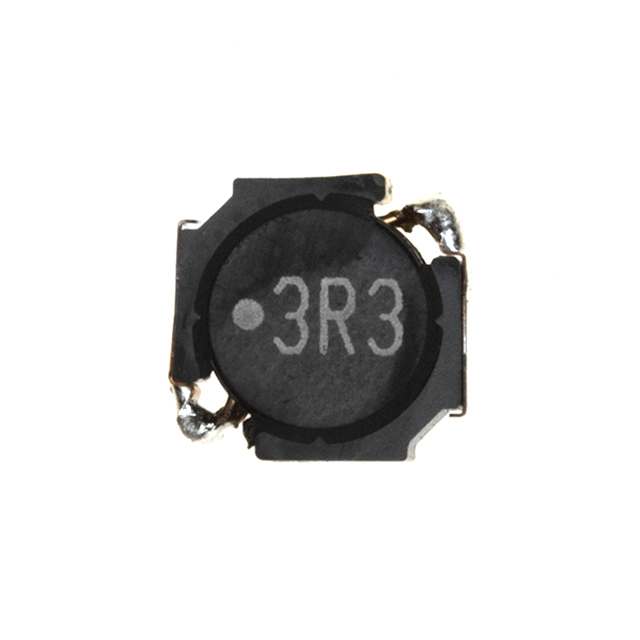

VLF10045T-3R3N6R9

TDK  VLF10045T-3R3N6R9  表面贴装功率电感器, VLF系列, 3.3 µH, ± 30%, 屏蔽, 0.0116 ohm, 6.9 A

固定器

得捷:
FIXED IND 3.3UH 6.9A 11.6MOHM SM

贸泽:
Fixed Inductors 3.3uH 30%

e络盟:
TDK  VLF10045T-3R3N6R9  表面贴装功率电感器, VLF系列, 3.3 µH, ± 30%, 屏蔽, 0.0116 ohm, 6.9 A

艾睿:
Use this power VLF10045T-3R3N6R9 surface mount inductor from TDK to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its test frequency is 100K Hz. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 6.9Typ A with a maximum resistance of 11.6m Ohm. It has an inductance of 3.3u H. This product is 10.4 mm long, 4.5 mm tall and 10.1 mm deep.

安富利:
Ind Power Shielded Wirewound 3.3uH 30% 100KHz 6.9A T/R

富昌:
VLF Series 3.3 uH ±30 % 6.9 A 11.6 mOhm SMT Shielded Wirewound Inductor

Chip1Stop:
Ind Power Shielded Wirewound 3.3uH 30% 100KHz 6.9A T/R

Verical:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz Ferrite 6.9A 0.0116Ohm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz Ferrite 6.9A 11.6mOhm DCR T/R
