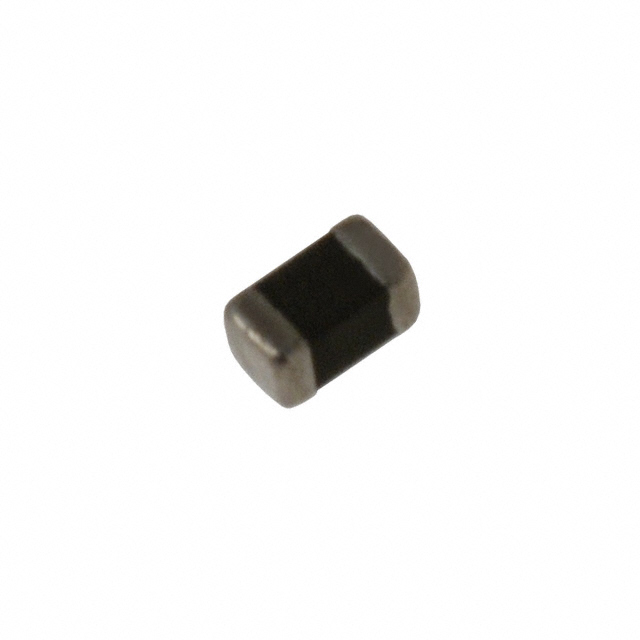

V18MLA0402NR

LITTELFUSE  V18MLA0402NR  TVS压敏电阻, ML系列, 14 V, 18 V, 50 V, 0402 [1005 公制], 多层压敏变阻器MLV

Description

The MLA Series also known as "ML" series family of transient voltage surge suppression devices is based on the Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance EMC. The MLA Series is typically applied to protect integrated circuits and other components at the circuit board level.

Features

• RoHS compliant

•  Leadless 0402, 0603, 0805, 1206 and 1210 chip sizes

• Multilayer ceramic construction technology

•  -55°C to +125°C operating temp. range

•  Operating voltage range VMDC = 5.5V to 120V

•  Rated for surge current 8 x 20μs

•  Rated for energy 10 x 1000μs

•  Inherent bi-directional clamping

•  Standard low capacitance types available

Applications

•  Suppression of inductive switching or other transient events such as EFT and surge voltage at

the circuit board level

•  ESD protection for IEC 61000-4-2, MIL-STD-883c method 3015.7, and other industry specifications see also the MLE or MLN Series

• Provides on-board transient voltage protection for ICS and transistors

•  Used to help achieve electromagnetic compliance of end products

•  Replace larger surface mount TVS Zeners in many applications
