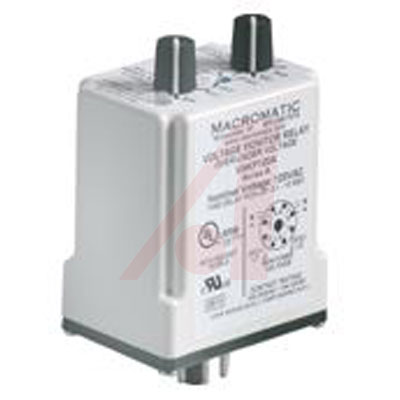

Relay, Monitor; E-Mech; Voltage; DPDT; Ctrl-V 12DC; 10A; 240VAC; 8Pin Octal; VAKP Series
The VAKP Series has an adjustable drop-out voltage setting Umin of 75-95 percent of the pick-up setting a fixed drop-out voltage setting of 95 percent of the pick-up setting is available on the VMP Series. The relay energizes and the LED is Red when the monitored voltage is above the pick-up setting for a period longer than the fixed pick-up time delay of 0.5 seconds. The relay de-energizes and the LED is Green when the monitored voltage is below the dropout setting for a period longer than the drop-out time delay t, which is adjustable from 0.1-10 seconds.
Monitors AC single phase and DC voltages
True RMS voltage measurement on AC devices ensures more accurate sensing
Wide range of user-adjustable pick-up voltages
Adjustable time delay on drop-out of 0.1-10 seconds
LED indicates output relay status
Compact plug-in case utilizing industry standard 8 pin octal socket
