VLF 系列 220 uH ±20% 0.81A 537 Ohm 屏蔽 表面贴装 线绕 功率电感
220µH Shielded Wirewound Inductor 810mA 537mOhm Max Nonstandard
得捷:
FIXED IND 220UH 810MA 537MOHM SM
艾睿:

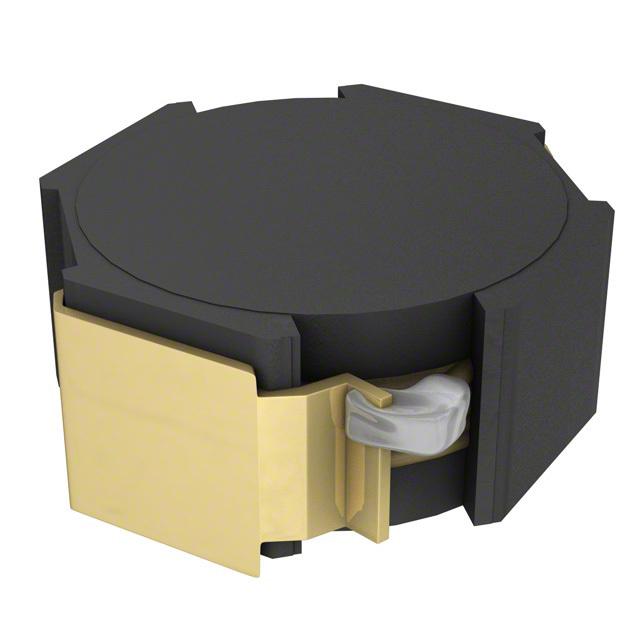

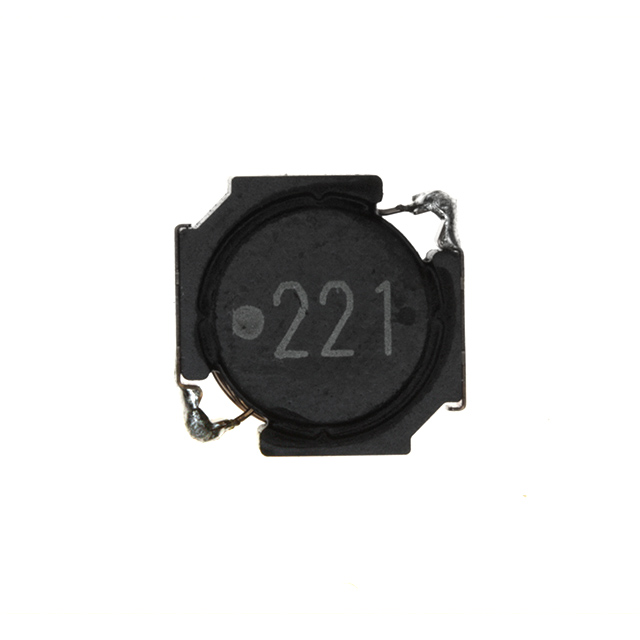

An ideal space-saving electronic component is this power VLF10040T-221MR81 surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 220u H. This SMD inductor has a maximum DC current of 900mA typ with a maximum resistance of 537m Ohm. It has a tolerance of 20%. This product is 10.4 mm long, 4 mm tall and 10.1 mm deep. This device is made with wirewound technology. Its test frequency is 100K Hz.
安富利:
Ind Power Shielded Wirewound 220uH 20% 100KHz 900mA T/R
富昌:
VLF 系列 220 uH ±20% 0.81A 537 Ohm 屏蔽 表面贴装 线绕 功率电感
Chip1Stop:
Ind Power Shielded Wirewound 220uH 20% 100KHz Ferrite 900mA T/R
额定电流 810 mA
容差 ±20 %
电感 220 µH
产品系列 VLF-M-CA
电阻 467 mΩ
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤537 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.537 Ω
安装方式 Surface Mount
引脚数 2
封装 Nonstandard
长度 10 mm
宽度 9.7 mm
高度 4 mm
封装 Nonstandard
工作温度 -40℃ ~ 105℃
产品生命周期 Obsolete
包装方式 Cut Tape CT
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VLF10040T-221MR81 TDK 东电化 | 当前型号 | 当前型号 |
CLF10040T-221M 东电化 | 功能相似 | VLF10040T-221MR81和CLF10040T-221M的区别 |
