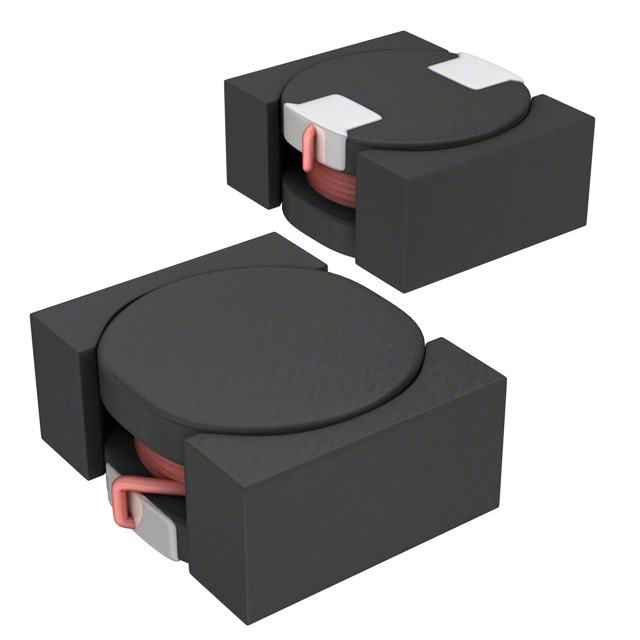

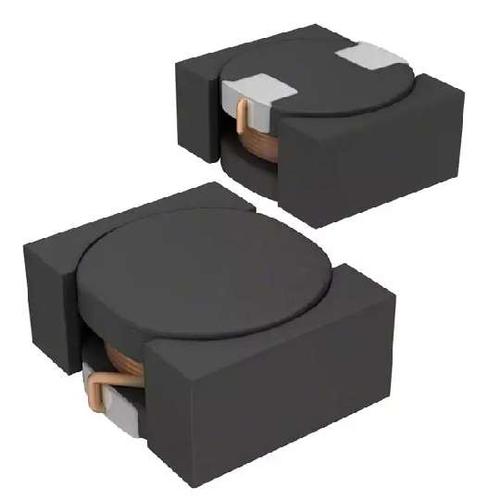

TDK VLF302512MT-4R7M 表面贴装功率电感器, VLF-M系列, 4.7 µH, ± 20%, 屏蔽, 0.136 ohm, 1.42 A
固定器
得捷:
FIXED IND 4.7UH 1.42A 136MOHM SM
欧时:
TDK VLF-M 系列 屏蔽 铁氧体芯材 4.7 μH 绕线贴片电感器 VLF302512MT-4R7M, 970mA Idc
贸泽:
Fixed Inductors SHIELD 0.97Amp 4.7uH
e络盟:
功率电感SMD, 4.7 µH, 1.42 A, 屏蔽, 1.08 A, VLF-M系列, 3mm x 2.5mm x 1.2mm
艾睿:
This power VLF302512MT-4R7M surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 105 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has an inductance of 4.7u H. This device utilizes wirewound technology. Its test frequency is 1M Hz. This product is 3.2 mm long, 1.2 mm tall and 2.7 mm deep. This SMD inductor has a maximum DC current of 1.42Typ A with a maximum resistance of 136m Ohm. It has a tolerance of 20%.
安富利:
Ind Power Shielded Wirewound 4.7uH 20% 1MHz 1.42A T/R
Verical:
Inductor Power Shielded Wirewound 4.7uH 20% 1MHz Ferrite 1.42A 0.136Ohm DCR T/R
Newark:
# TDK VLF302512MT-4R7M Surface Mount Power Inductor, VLF-M Series, 4.7 H, 20%, Shielded, 0.136 ohm, 1.42 A
额定电流 1.42 A
容差 ±20 %
电感 4.7 µH
产品系列 VLF-M-CA
电感公差 ±20 %
测试频率 1 MHz
电阻DC) ≤136 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.136 Ω
安装方式 Surface Mount
封装 3mm x 2.5mm x 1.2mm
长度 3 mm
宽度 2.5 mm
高度 1.2 mm
封装 3mm x 2.5mm x 1.2mm
工作温度 -40℃ ~ 105℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VLF302512MT-4R7M TDK 东电化 | 当前型号 | 当前型号 |
VLS3012HBX-4R7M 东电化 | 功能相似 | VLF302512MT-4R7M和VLS3012HBX-4R7M的区别 |
