VLF10045T-220M2R8

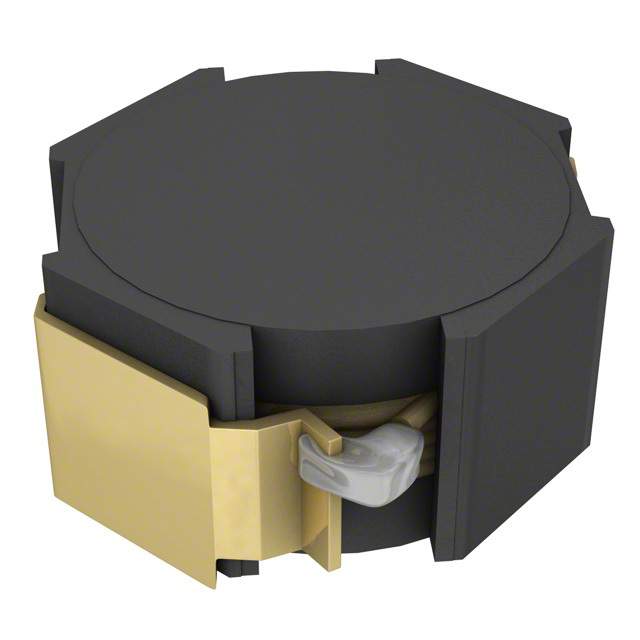

VLF10045T-220M2R8图片1
VLF10045T-220M2R8图片2
VLF10045T-220M2R8图片3
VLF10045T-220M2R8图片4
VLF10045T-220M2R8图片5
VLF10045T-220M2R8图片6
VLF10045T-220M2R8图片7
VLF10045T-220M2R8图片8
VLF10045T-220M2R8图片9
VLF10045T-220M2R8图片10
VLF10045T-220M2R8图片11
VLF10045T-220M2R8图片12
VLF10045T-220M2R8图片13
VLF10045T-220M2R8图片14
VLF10045T-220M2R8图片15
VLF10045T-220M2R8图片16
VLF10045T-220M2R8图片17
VLF10045T-220M2R8图片18
VLF10045T-220M2R8概述

VLF10045 系列小尺寸,薄型设计 特别适用于手机直流-直流转换器扼流圈 ### TDK 非标准 SMT 电感器(扼流圈)

其他


得捷:
FIXED IND 22UH 2.8A 57 MOHM SMD


欧时:
电感器,VLF10045 系列小尺寸,薄型设计 特别适用于手机直流-直流转换器扼流圈 ### TDK 非标准 SMT 电感器(扼流圈)


艾睿:
An ideal space-saving electronic component is this power VLF10045T-220M2R8 surface mount inductor from TDK. This SMD inductor has an operating temperature range of -40 °C to 105 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 20%. This device utilizes wirewound technology. Its test frequency is 100K Hz. This product is 10.4 mm long, 4.5 mm tall and 10.1 mm deep. This SMD inductor has a maximum DC current of 3Typ A with a maximum resistance of 57m Ohm. It has an inductance of 22u H.


安富利:
Ind Power Shielded Wirewound 22uH 20% 100KHz 3A T/R


富昌:
VLF Series 22 uH ±20 % 2.8 A 57 Ohm SMT Shielded Wirewound Inductor


Chip1Stop:
Ind Power Shielded Wirewound 22uH 20% 100KHz 3A T/R


Verical:
Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 3A 0.057Ohm DCR T/R


Newark:
# TDK  VLF10045T-220M2R8  Surface Mount Power Inductor, VLF Series, 22 µH, 3 A, 2.8 A, Shielded, 0.057 ohm


MASTER:
Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 3A 57mOhm DCR T/R


Online Components:
Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 3A 57mOhm DCR T/R


Electro Sonic:
Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 3A 57mOhm DCR T/R


Win Source:
22μH Shielded Wirewound Inductor 2.8A 57 mOhm Max Nonstandard


VLF10045T-220M2R8中文资料参数规格
技术参数

额定电流 2.8 A

容差 ±20 %

电感 22 µH

产品系列 VLF-M-CA

电阻 49.5 mΩ

电感公差 ±20 %

测试频率 100 kHz

电阻DC) ≤57 mΩ

工作温度Max 105 ℃

工作温度Min -40 ℃

电阻DC Max 0.057 Ω

封装参数

安装方式 Surface Mount

引脚数 2

封装 Nonstandard

外形尺寸

长度 9.7 mm

宽度 10 mm

高度 4.5 mm

封装 Nonstandard

物理参数

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Last Time Buy

包装方式 Tape & Reel TR

最小包装 500

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

HTS代码 8504508000

数据手册

VLF10045T-220M2R8引脚图与封装图
VLF10045T-220M2R8引脚图
VLF10045T-220M2R8封装图
VLF10045T-220M2R8封装焊盘图
在线购买VLF10045T-220M2R8
型号: VLF10045T-220M2R8
制造商: TDK 东电化
描述:VLF10045 系列 小尺寸,薄型设计 特别适用于手机直流-直流转换器扼流圈 ### TDK 非标准 SMT 电感器(扼流圈)
