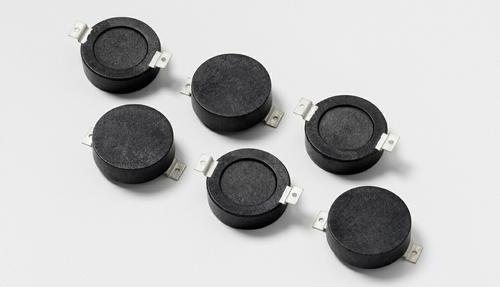

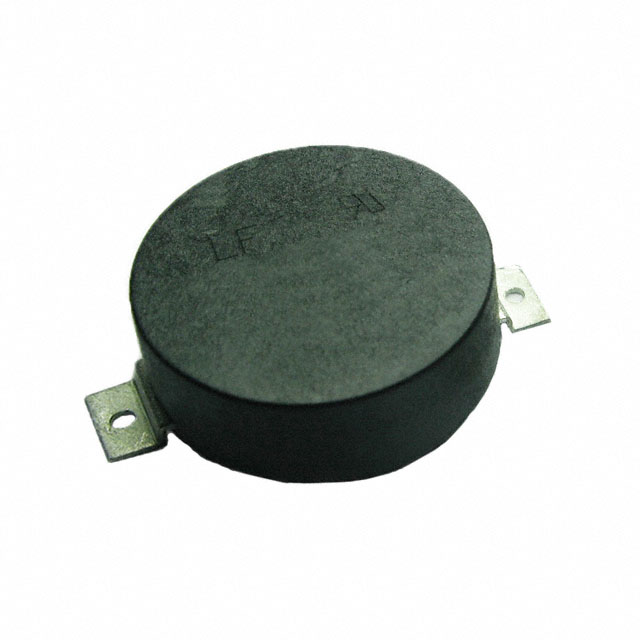

V320SM20

压敏电阻产品 - 表面贴装压敏电阻 Varistor Products - Surface Mount Varistors

501 V 6.5 kA 变阻器 1 电路 表面贴装型 圆片式，20mm，接片式 SMD

得捷:
VARISTOR 501V 6.5KA DISC 20MM

立创商城:
V320SM20

艾睿:

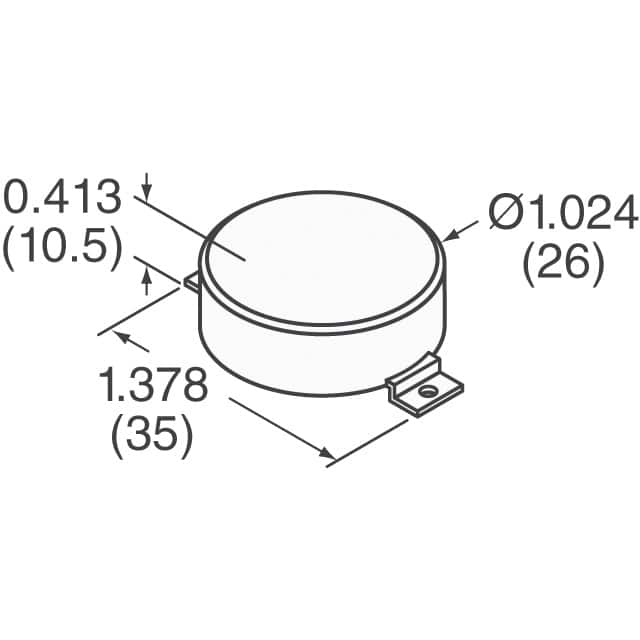

Have complete control of resistance in a voltage applied circuit by using this V320SM20 MOV developed by Littelfuse. Its maximum surge current is 6500 A. This device&s;s clamping current is 100 A and clamping voltage is 810 V. This voltage dependent resistor has an operating temperature of -40 to 85 °C. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This product is 35 mm long, 10.5 mm tall and 26 mm deep. The maximum AC voltage rating is 320 VAC and the maximum DC voltage rating is 420 VDC. This varistor has a voltage of 540 V. This device utilizes metal oxide technology. Its capacitance value is 750pF.

Chip1Stop:
Var MOV 320VAC/420VDC 6500A 540V SMD

Newark:
# LITTELFUSE  V320SM20  TVS Varistor, 320 V, 420 V, SM20 Series, 810 V, SMD, Metal Oxide Varistor MOV
