Voltage Supervisor SOT-23-3 Evaluation Board

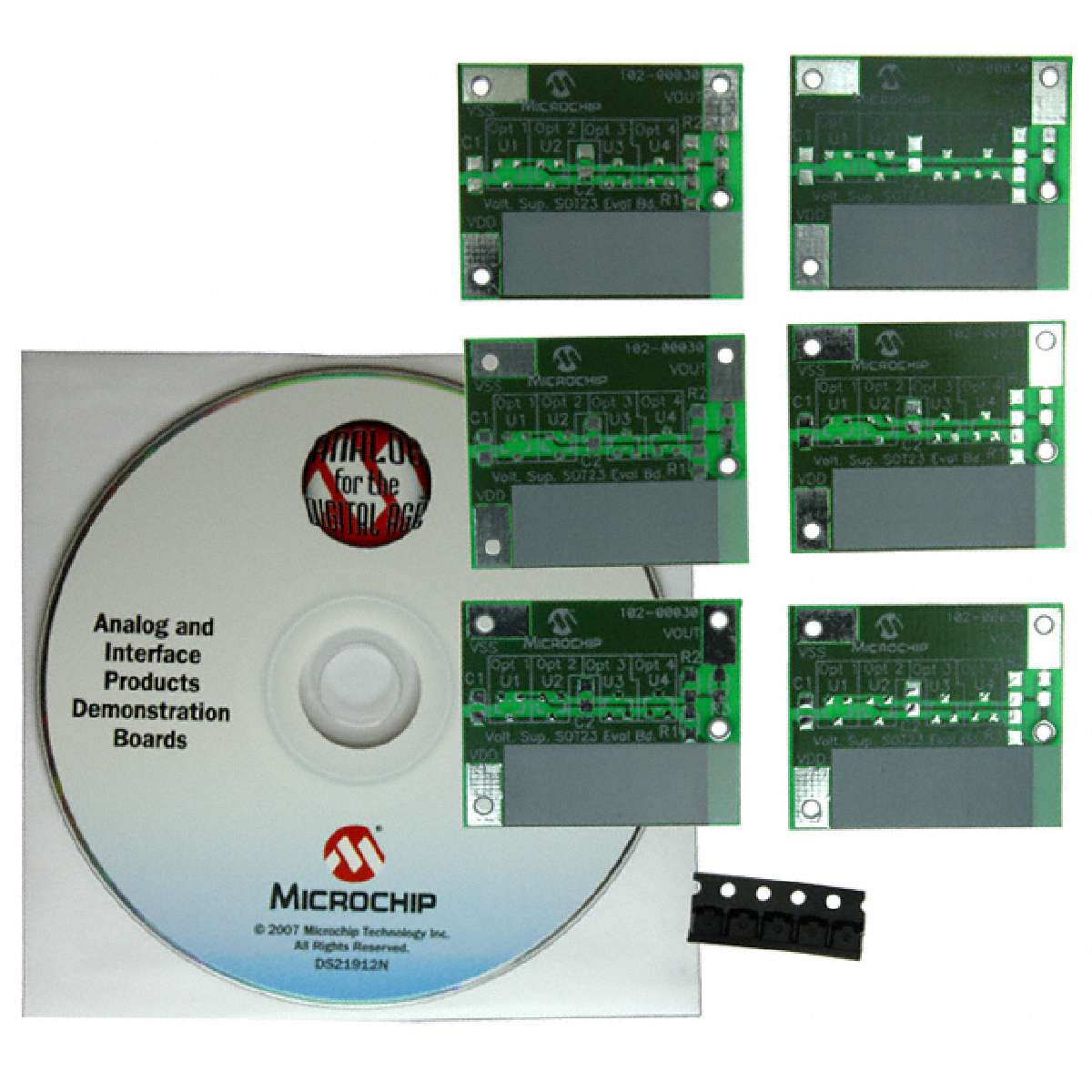

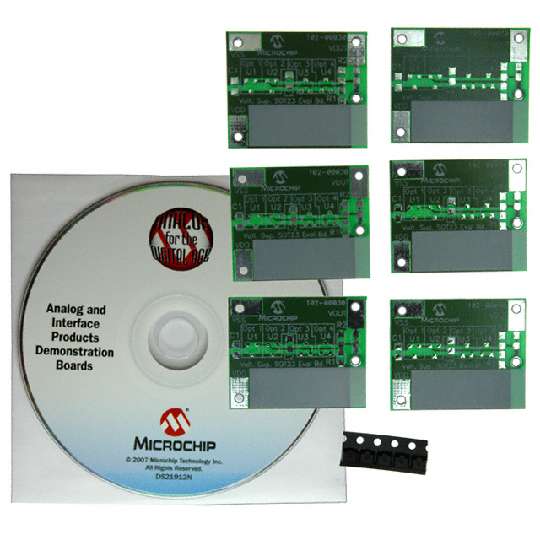

he Voltage Supervisor SOT-23 Evaluation Board allows the system designer to quickly evaluate the operation of ’s Voltage Supervisors and Voltage Detectors in the SOT-23-3 package. The board has been made generic so that other SOT-23-3 devices such as LDOs and Voltage References may also be evaluated using this board. This kit comes with four blank PCBs to allow the designer to test multiple devices.
**Features:**
* Blank PCB supporting four SOT-23-3 pin outs/device foot prints
* Layout allows installation of surface mount:
\- Power supply filtering capacitor
\- Device output filtering capacitor
\- Device output Pull-up resistor
\- Device output Pull-down load resistor
\- Device output in-line resistance for interfacing to external circuits
* Layout provides for through hole or surface mount connection posts VDD, VSS, and VOUT
* White silk-screen area on board allows the user to capture details of the implemented circuit
