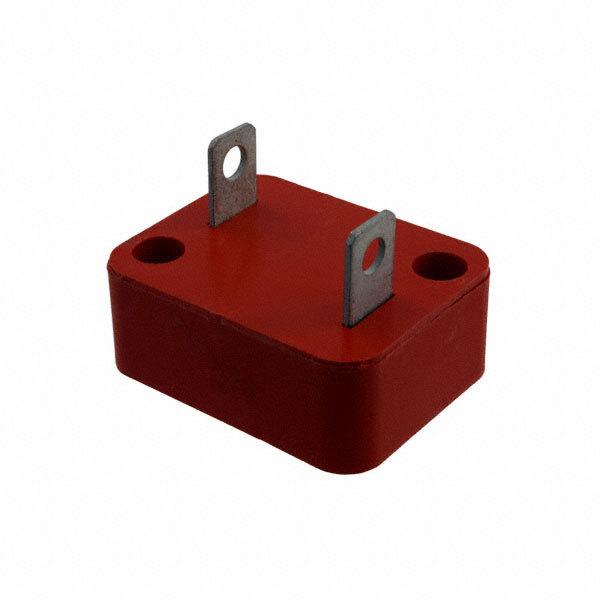

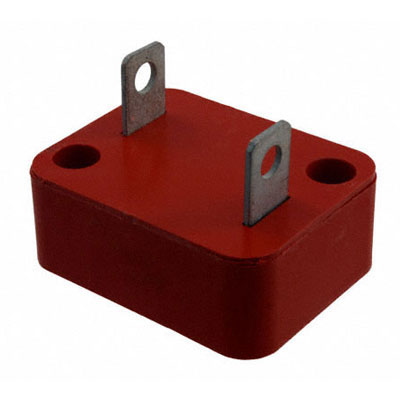

工业高能终端压敏电阻 Industrial High Energy Terminal Varistors
Look no further, this MOV from is a variable resistor. This device"s clamping current is 200 A and clamping voltage is 1720 V. Its maximum surge current is 40000 A. This voltage dependent resistor has an operating temperature of -55 to 85 °C. Its capacitance value is 0.002uF. This device utilizes metal oxide technology. This product is 60.3 mm long, 41 mm tall and 46.8 mm deep. The maximum AC voltage rating is 660 VAC and the maximum DC voltage rating is 850 VDC. This varistor has a voltage of 1050 V.
额定电压DC 850 V
额定电压AC 660 V
电容 0.002 µF
电路数 1
钳位电压 1.72 kV
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 850 V
额定电压AC Max 660 V
安装方式 Surface Mount
封装 Blade Type, Encased
长度 60.3 mm
宽度 46.8 mm
高度 41 mm
封装 Blade Type, Encased
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
