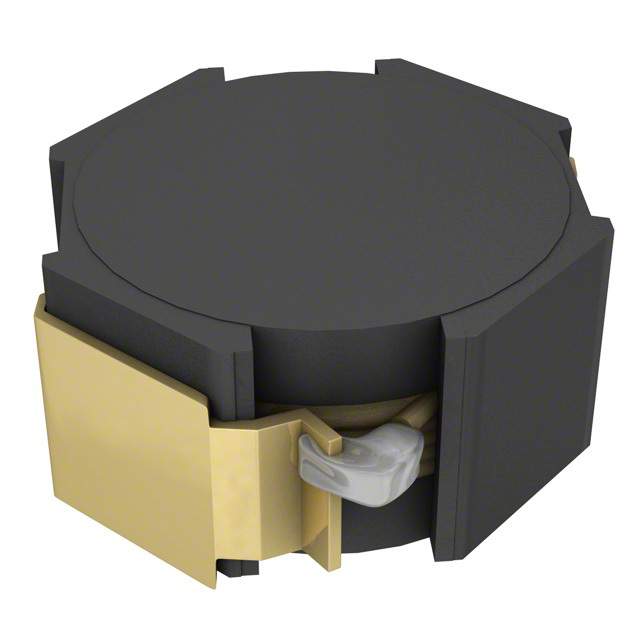

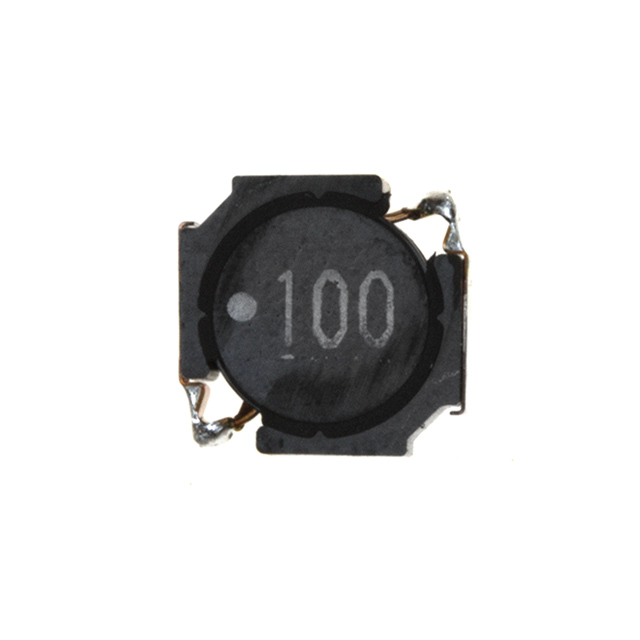

VLF10045T-100M4R3

电感, 10UH, 4.3A, ±20%

10µH Shielded Wirewound Inductor 4.3A 29mOhm Max Nonstandard

得捷:
FIXED IND 10UH 4.3A 29 MOHM SMD

e络盟:
电感, 10UH, 4.3A, ±20%

艾睿:
Save valuable space on a PCB with this power VLF10045T-100M4R3 surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 4.3Typ A with a maximum resistance of 29m Ohm. It has an inductance of 10u H. Its test frequency is 100K Hz. This product is 10.4 mm long, 4.5 mm tall and 10.1 mm deep. It has a tolerance of 20%. This device is made with wirewound technology.

安富利:
Ind Power Shielded Wirewound 10uH 20% 100KHz 4.3A T/R

Chip1Stop:
Ind Power Shielded Wirewound 10uH 20% 100KHz 4.3A T/R

Verical:
Inductor Power Shielded Wirewound 10uH 20% 100KHz Ferrite 4.3A 0.029Ohm DCR T/R

Newark:
# TDK  VLF10045T-100M4R3  Surface Mount Power Inductor, VLF Series, 10 µH, 4.3 A, 4.3 A, Shielded, 0.029 ohm

Win Source:
10μH Shielded Wirewound Inductor 4.3A 29 mOhm Max Nonstandard
