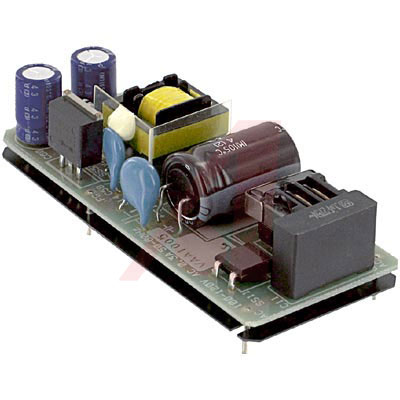

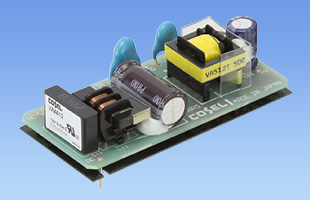

VAA10 系列 10 W 单输出 5 V PCB 安装 类型 AC/DC 转换器
85 to 132 VAC Input Voltage 1 Phase, 47 to 440 Hz Frequency, VAA Series Switching Power Supplies
** Designed for Small Compact Footprint and Low Cost.**
* PC Board Mount — Open Frame
* High Quality — Documented Field Failure Rate Less than 0.012%
* Standard Output Voltages: 5 and 12 VDC
* Standard Input: AC 85~132
* Inrush Current, Over-Voltage and Over-Current Protection Circuitry
* Fully Regulated, Fully Isolated Input/Output
* Conductive Noise: FCC-B, VCCI-B with Additional Capacitors
* UL, cUL Safety Approvals
* Two-Year Warranty
额定功率 10 W
输出接口数 1
输出电压 5 V
输出电流 2 A
输入电流 300 mA
输出功率 10 W
输入电压DC Max 170 V
输入电压DC Min 110 V
输入电压AC Max 132 V
输入电压AC Min 85 V
输出电流Max 2 A
输入电流Min 0.3 A
工作温度Max 70 ℃
工作温度Min -10 ℃
输入电压 85V ~ 132V
安装方式 Through Hole
引脚数 5
封装 DIP-5
长度 2.85 in
宽度 1.26 in
高度 18 mm
封装 DIP-5
工作温度 -10℃ ~ 70℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 PB free
