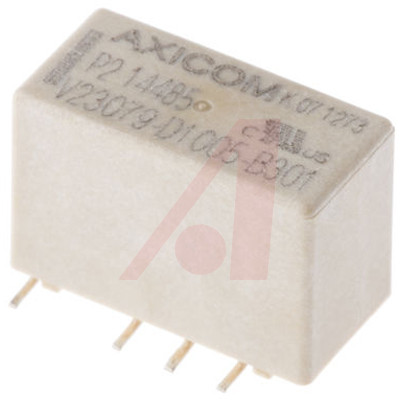

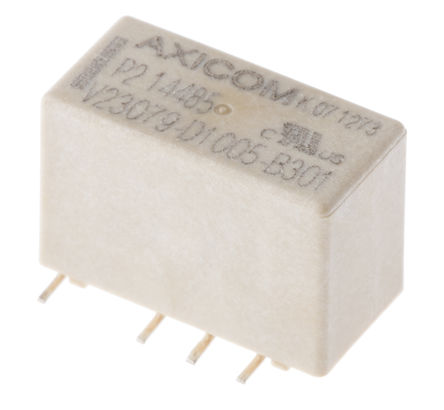

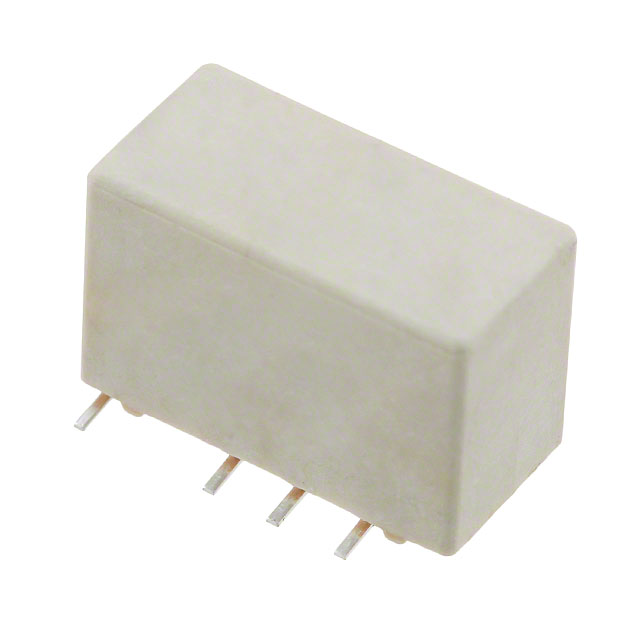

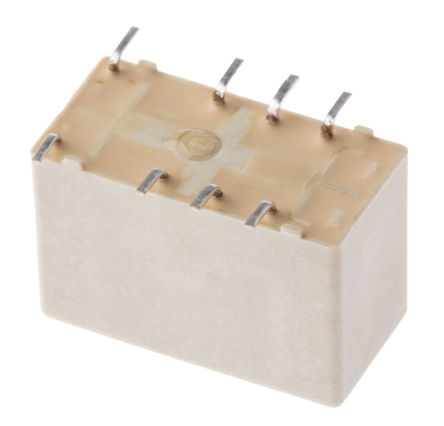

TE CONNECTIVITY / AXICOM V23079D1005B301 信号继电器, DPDT, 24VDC, 5A, SMD, 整卷
通用 继电器 DPDT（2 Form C） 表面贴装型
欧时:
Relay Signal 24VDC Through hole DPDT
得捷:
RELAY GEN PURPOSE DPDT 2A 24VDC
立创商城:
24VDC 2A 无锁存
e络盟:
信号继电器, 24 VDC, DPDT, 2 A, P2/V23079系列, SMD, 非闭锁
艾睿:
Signal Relay 24VDC 2A DPDT14.5x9.4x10.4mm SMD Automotive Medical
Allied Electronics:
2CO Surface Mount Non-Latching Relay Solder, 5 A, 24V dc
安富利:
Electromechanical Relay DPDT 2A 24VDC 4.114KOhm Surface Mount
Chip1Stop:
Electromechanical Relay 24VDC 4.114KOhm 2A DPDT 14.5mm 9.4mm 10.4mm SMD Signal Relay Automotive Medical
Verical:
Electromechanical Relay 24VDC 4.114KOhm 2A DPDT 14.5mm 9.4mm 10.4mm SMD Signal Relay Automotive Medical
MASTER:
Signal Relay 24VDC 2A DPDT14.5x9.4x10.4mm SMD Automotive Medical
Online Components:
Signal Relay 24VDC 2A DPDT 14.5mm 9.4mm 10.4mm SMD Automotive Medical
Electro Sonic:
Signal Relay 24VDC 2A DPDT14.5x9.4x10.4mm SMD Automotive Medical
Win Source:
General Purpose Relay DPDT 2 Form C Surface Mount
额定电流 2 A
绝缘电阻 >1000 MΩ
触点额定电流 2 A
线圈电压 24 VDC
线圈电流 5.83 mA
线圈电阻 4.114 kΩ
额定电流Max 2 A
线圈电压DC 24 V
线圈功率 140 mW
额定功率Max 60W, 62.5VA
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 24 VDC
接触电阻Max <50 mΩ
安装方式 Surface Mount
引脚数 6
封装 DIP

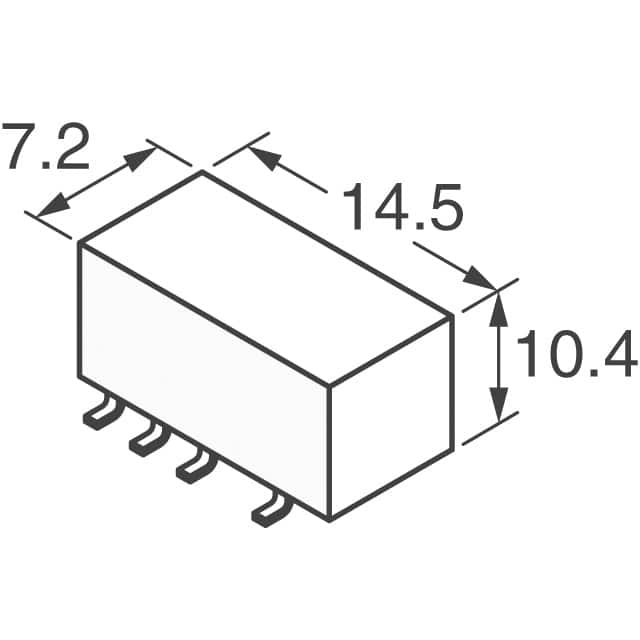

长度 14.5 mm
宽度 7.2 mm
高度 10.4 mm
封装 DIP
触点材质 Silver Nickel, Gold
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 测试与测量, 车用, 通信与网络, 医用, Test & Measurement, Audio, Medical, Automotive, Consumer Electronics, 消费电子产品, Communications & Networking, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536490099
