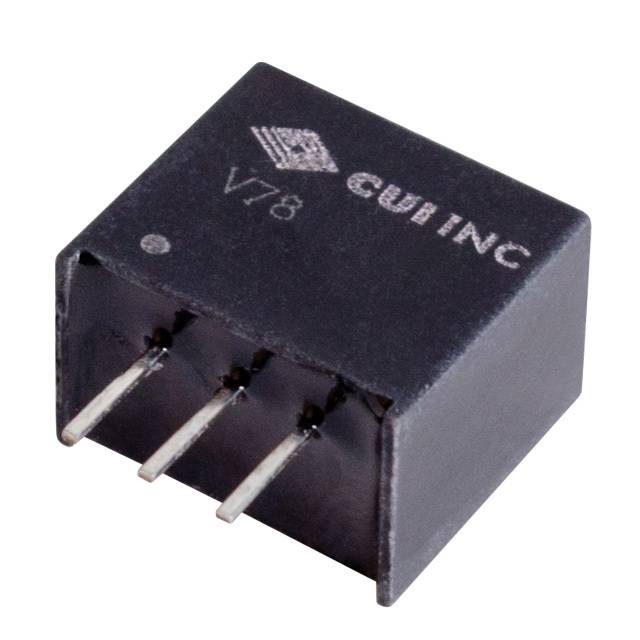

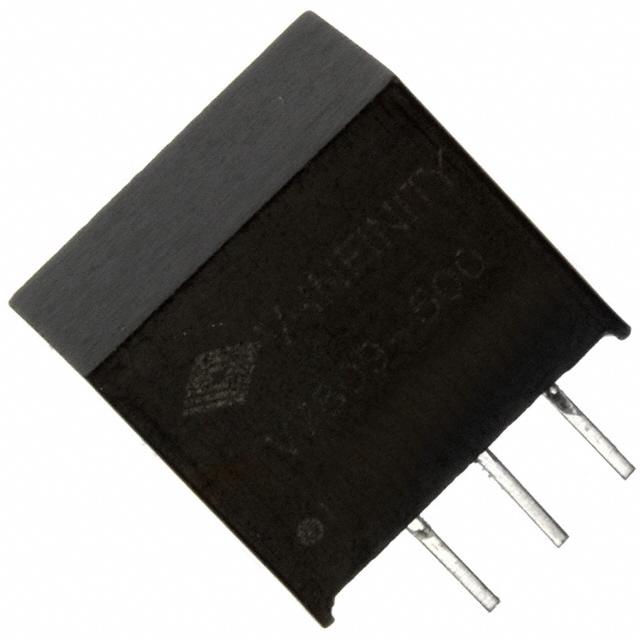

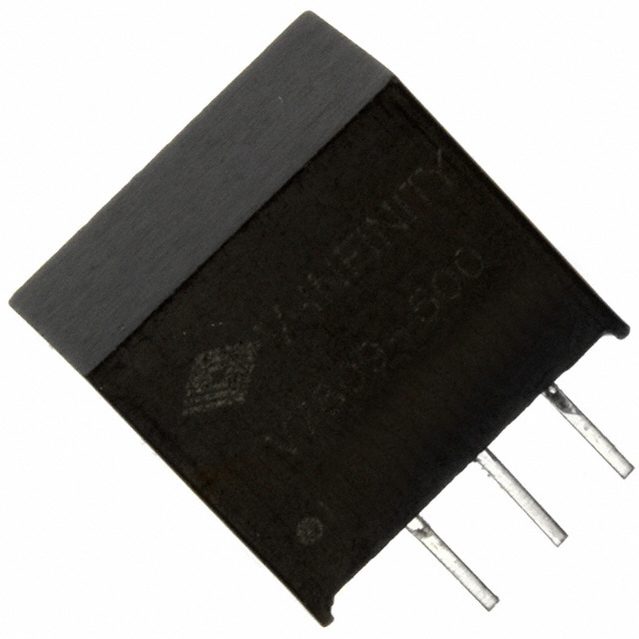

V7809-500

Module DC-DC 1Out 9V 0.2A 3Pin

description

The V78XX series of switching regulators are designed to replace 78XX linear regulators, with the objective of drop-in replacement without the need for a heatsink, because the V78XX series features high efficiency under all line conditions. Built-in short-circuit and over-temperature protections ensure very rugged operations. Additionally, low ripple and noise performance make the parts useful in a wide range of applications.

features

·efficiency up to 96%

·no need for heatsinks

·wide input range

·short circuit protection

·thermal shutdown

·low ripple and noise

·pin compatible to LM78XX series

·non-isolated
