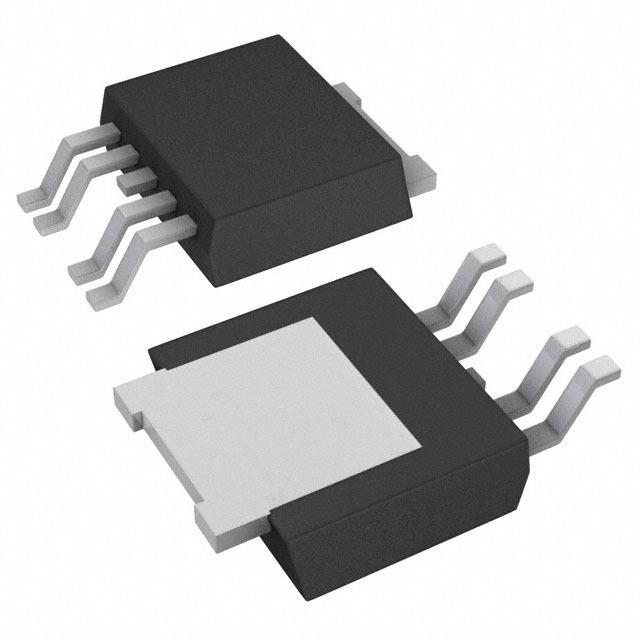

36 V 6 A 60 mΩ 驱动器 PPAK 表面贴装
It"s easy to protect your high current circuit by using this high side power switch by STMicroelectronics. This charge controller has single output. This device has a maximum power dissipation of 60000 mW. It features 0.06Max Ohm switch on resistance. Its maximum power dissipation is 60000 mW. This device has a supply current of 2 mA and a minimum output current of 6 A. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This charge controller has a minimum operating temperature of -40 °C and a maximum of 150 °C.
电源电压DC 5.50V min
输出接口数 1
输出电流 6 A
供电电流 2 mA
通道数 1
针脚数 5
耗散功率 60000 mW
输出电流Max 6 A
输出电流Min 6 A
输入数 1
工作温度Max 150 ℃
工作温度Min -40 ℃
耗散功率Max 60000 mW
电源电压 13 V
电源电压Max 36 V
电源电压Min 5.5 V
安装方式 Surface Mount
引脚数 5
封装 TO-252-5
高度 2.4 mm
封装 TO-252-5
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VN750PTTR-E ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
VN750PT-E 意法半导体 | 类似代替 | VN750PTTR-E和VN750PT-E的区别 |
VN750PT 意法半导体 | 类似代替 | VN750PTTR-E和VN750PT的区别 |
VN750PT13TR 意法半导体 | 类似代替 | VN750PTTR-E和VN750PT13TR的区别 |
